x:panda

Brand: R82

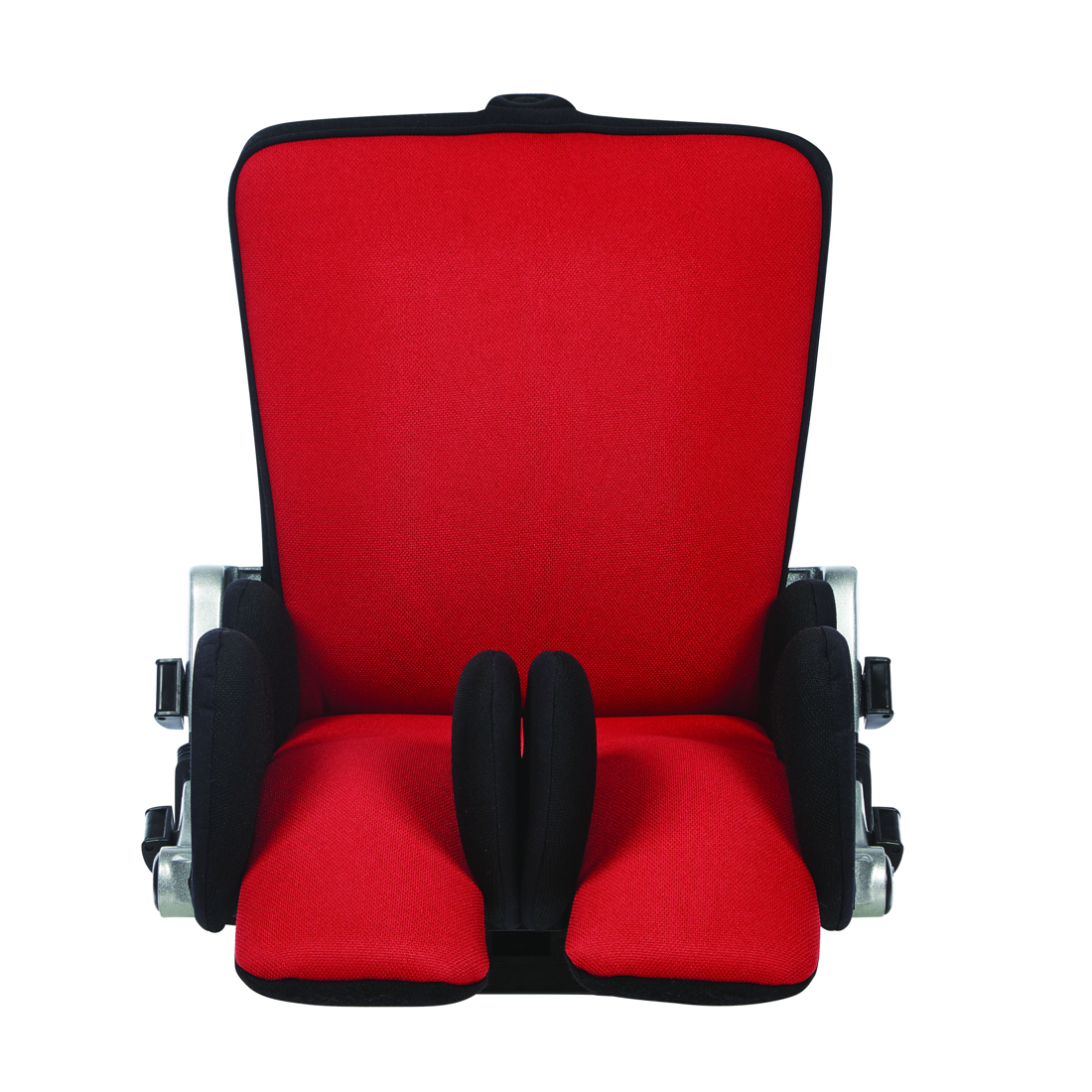

The x:panda is a multi-adjustable dynamic seat, developed to establish an ideal seating position for children and youngsters living with a disability.

Request Details

    x:panda is a multi-adjustable dynamic seat, delivered in 4 different sizes – each seat with up to 12 cm in seat width and up to 20 cm of depth adjustment coupled with sliding back growth. The back is dynamic, making it possible for the child to extend and push back against relatively light resistance and then regain the desired sitting position. The back is lockable which could be preferred in feeding situations and required when being used in transportation. The back can also be angled to make it possible to seat the child with either an open or closed hip angle.

    The x:panda seat complies with ISO 16840-4

    Size 1

    Size 2

    Size 3

    Size 4
    Item number 891011x-01 891012x-01 891013x-01 891014x-01
    Abduction angle each leg, size 1 in smallest position (°) 0 – 8 – – –
    Abduction angle, each leg (°) 0 – 15 0 – 15 0 – 15 0 – 15
    Armrest to seat distance (mm) 100-165 100-165 100-165 100-165
    Back width, top of backrest (mm) 230 280 330 350
    Backrest angle (°) (-5) – 30 (-5) – 30 (-5) – 30 (-5) – 30
    Backrest height (mm) 270-370 320-420 350-470 500-710
    Effective seat depth (mm) 160-260 220-330 260-390 390-530
    Effective seat width (mm) 160, 200, 240 200, 240, 280 260, 310, 360 340, 400, 460
    Front location of arm rest structure (mm) 140 140 180 350
    Mass device (kg) 6.5 8.5 11 13
    Maximum rated load (kg) 38.5 40.5 73 95
    Maximum user height (mm) 1050 1280 1430 1800
    Maximum user mass (kg) 30 30 60 80
    Maximum user mass in transportation (kg) 30 30 60 75
    Minimum User Height (mm) 650 850 1000 1390
    Width thighs (mm) 70, 90, 110 100, 120, 140 120, 145, 170 130, 190, 250
