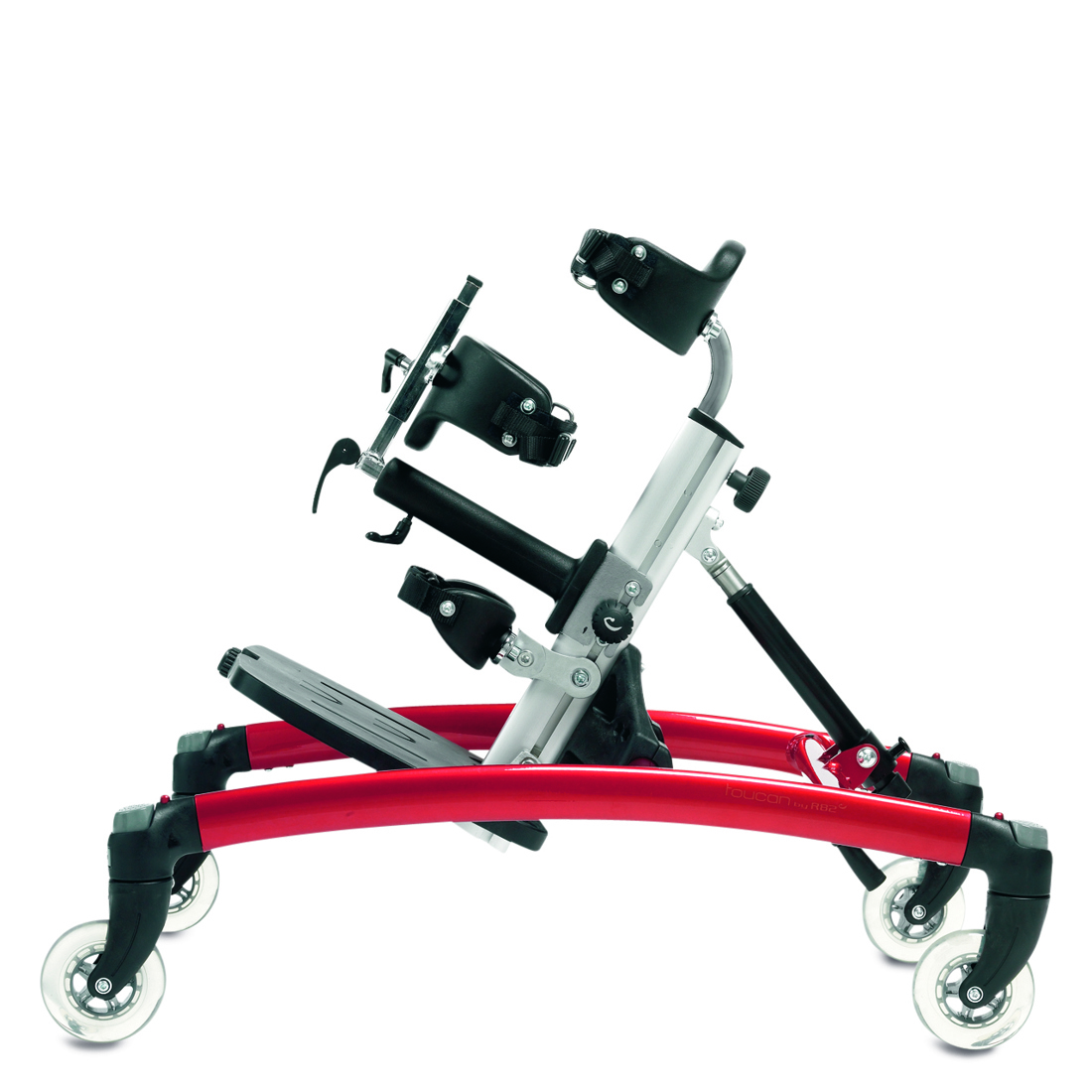

Toucan

Brand: R82

The R82 Toucan is an innovative standing frame for children. Crafted with precision and care, the R82 Toucan standing frame supports both an upright and prone standing position, offering versatility tailored to children’s specific needs..

    With its soft curves and vibrant colors, the R82 Toucan is designed with both functionality and user comfort in mind. The thoughtful design of the standing frame includes a unique spacing between its side bars, accommodating most wheelchairs and facilitating easy sit-to-stand transfers. Moreover, the standing frames adaptable foot plate can be positioned as low as 60 mm above the floor, ensuring that the majority of the target users can effortlessly step into the frame.

    Designed with adaptability at its core, the R82 Toucan standing frame is available in five distinct sizes, catering to children ranging from approximately 870 mm (34 1/4″) to 1800 mm (70 3/4″). Demonstrating its robustness and durability, this standing frame boasts a maximum user mass of 70 kg (154 lb).

    In summary, the R82 Toucan exemplifies advanced design in pediatric standing frames. Its distinct features and adaptability across various sizes ensure it’s an optimal solution for children with a range of standing support requirements.

    Size 1 Size 2 Size 3 Size 4 Size 5
    Item number 861001 861002 861003 861004 861005
    Angle, center bar (°) 0-30 0-30 0-30 0-30 0-30
    Foot plate angle (°) 15 – (-10) 15 – (-10) 15 – (-10) 15 – (-10) 15 – (-10)
    Height from floor to foot plate (mm) 60 60 60 60 60
    Length (mm) 750 880 880 1110 1110
    Length, centre bar (mm) 450 500 700 800 1000
    Mass device (kg) 7.5 8.5 9 10.5 10.75
    Maximum rated load (kg) 39.5 50.5 61 72.5 82.75
    Maximum user mass (kg) 30 40 50 60 70
    Maximum user weight (kg) 30 40 50 60 70
    Overall height (mm) 670-870 720-1010 970-1230 1040-1340 1240-1540
    Overall width (mm) 560 630 630 700 700
    Static stability downhill (°) 5 5 5 5 5
    Static stability sideways (°) 5 5 5 5 5
    Static stability uphill (°) 5 5 5 5 5
    User height: floor to axil (mm) 340-700 540-900 740-1100 910-1210 1110-1410
