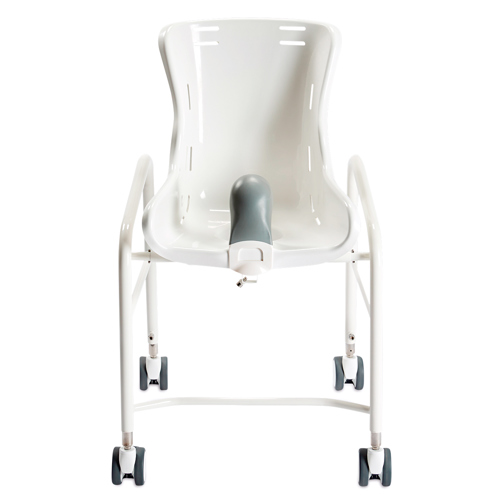

Swan

Brand: R82

The Swan is a stable and simple toilet and bathing chair suitable for children and youngsters.
Request Details
    The seat is a smooth shell, which makes it easy to clean. The frame and castors are stainless steel and with rust-proofed surfaces. The shell supports the trunk and shoulders and gives the user good trunk stability. The frame is height adjustable which is important for the carer to be able to use easily and tilt in space comes as standard. The Swan comes in 6 different sizes and two versions. Size 2 – 3 include a built-in pommel. Size 4 – 7 includes a removable splash guard.
    Features:
    -Tilt in space
    Tilts 20° for the child’s comfort and positioning.
    -Anatomical shape
    The Swan has a carefully designed shape that follows the user’s contours for improved stability and comfort shape.
    -Height adjustable
    The stainless steel legs adjust to accommodate most toilets.
    -Holder for pan
    For use when away from the toilet. A commode pan helps to create a flexible and convenient toileting solution.

    Size 2

    Size 3

    Size 4

    Size 5

    Size 6

    Size 7
    Item number 87002 87003 87044 87045 87046 87047
    Aperture W x D (mm) 105×155 120 x195 125×190 155×250 155×325 155×310
    Back width, bottom of backrest (mm) 240 255 280 310 355 430
    Back width, top of backrest (mm) 225 250 310 390 460 490
    Backrest height (mm) 380 420 400 480 570 570
    Effective seat depth (mm) 270 325 325 380 460 460
    Effective seat width (mm) 200 230 250 300 340 410
    Length with wheels (mm) 460 570 570 570 620 620
    Length without wheels (mm) 390 500 500 500 550 550
    Mass device (kg) 8 8.5 9.5 9.5 10.5 11.5
    Maximum rated load (kg) 40 70.5 81.5 91.5 102.5 123.5
    Maximum user mass (kg) 30 60 70 80 90 110
    Minimum turning diameter (mm) 1420 1600 1600 1560 1880 1880
    Overall height with wheels (mm) 680-840 710-870 780-940 790-950 860-1020 860-1020
    Overall height without wheels (mm) 590-750 620-780 690-850 700-860 770-930 770-930
    Overall width without wheels (mm) 460 500 500 500 540 620
    Overall width, with wheels (mm) 495 535 535 535 575 655
    Required width of right angled corridor (mm) 710 800 800 780 940 940
    Seat plane angle (°) 18 18 20 20 22 27
    Seat surface height at front edge, with wheels (mm) 370-530 480-640 480-640 480-640 480-640 480-640
    Seat surface height at front edge, without wheels (mm) 280-440 390-550 390-550 390-550 390-550 390-550
    Seat width front (mm) 300 340 360 380 430 480
