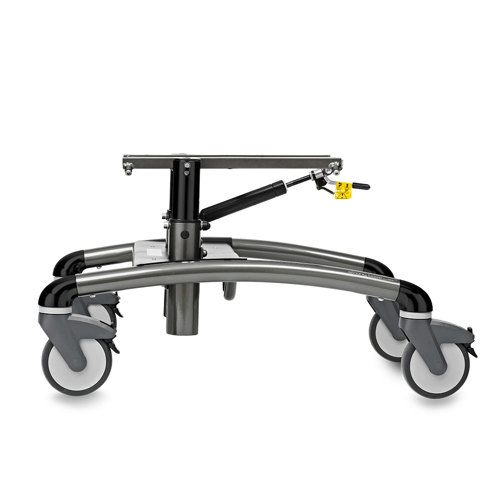

Strong Base

Brand: R82

The Strong Base is a simple, stable and strong base for large seat units such as the Panda Futura 5 and the x:panda 4 from R82.

    Seat units are mounted either directly onto the Strong Base or by means of an interface making it easy to switch between frames. The Strong Base is equipped with four smooth running castors which makes it easy to move the frame around. The Strong Base comes in one size and in two versions, with either manual or spindle height adjustment. Max. load on the Strong Base is 120 kg.

    Features:
    -Easy to manoeuvre
    The smooth running castors make it very easy to move the Strong Base around. All four castors are equipped with directional stabilizers and brakes.

    -Height adjustment
    The Strong Base has either manual or spindle height adjustment. The manual base adjust from 30 to 55 cm in height – the spindle base adjust from 30 to 51 cm in height.

    -Tilt in space
    The tilt in space function helps obtain varied seating positions. Simply angle the complete unit into the desired position. Tilt in space from -10 to +25°.

    -Fixed mounting or interface
    Various seats can be mounted directly onto the Strong Base. Alternatively the seats can be mounted by means of an interface.

    Manual

    Spindle

    Item number 89508-1M 89508-1S
    Footrest to adaptor plate (mm) 160-350 160-350
    Length (mm) 700 700
    Length with pushbar (mm) 830 830
    Mass device (kg) 14 15.5
    Max load (kg) 120 120
    Maximum rated load (kg) 136 137.5
    Overall height (mm) 300-550 300-510
    Overall height, push brace (mm) 795-1045 795-1005
    Overall length (mm) 830 830
    Overall width (mm) 600 600
    Seat plane angle (°) (-10) – 25 (-10) – 25
    Total mass (kg) 14 15.5
