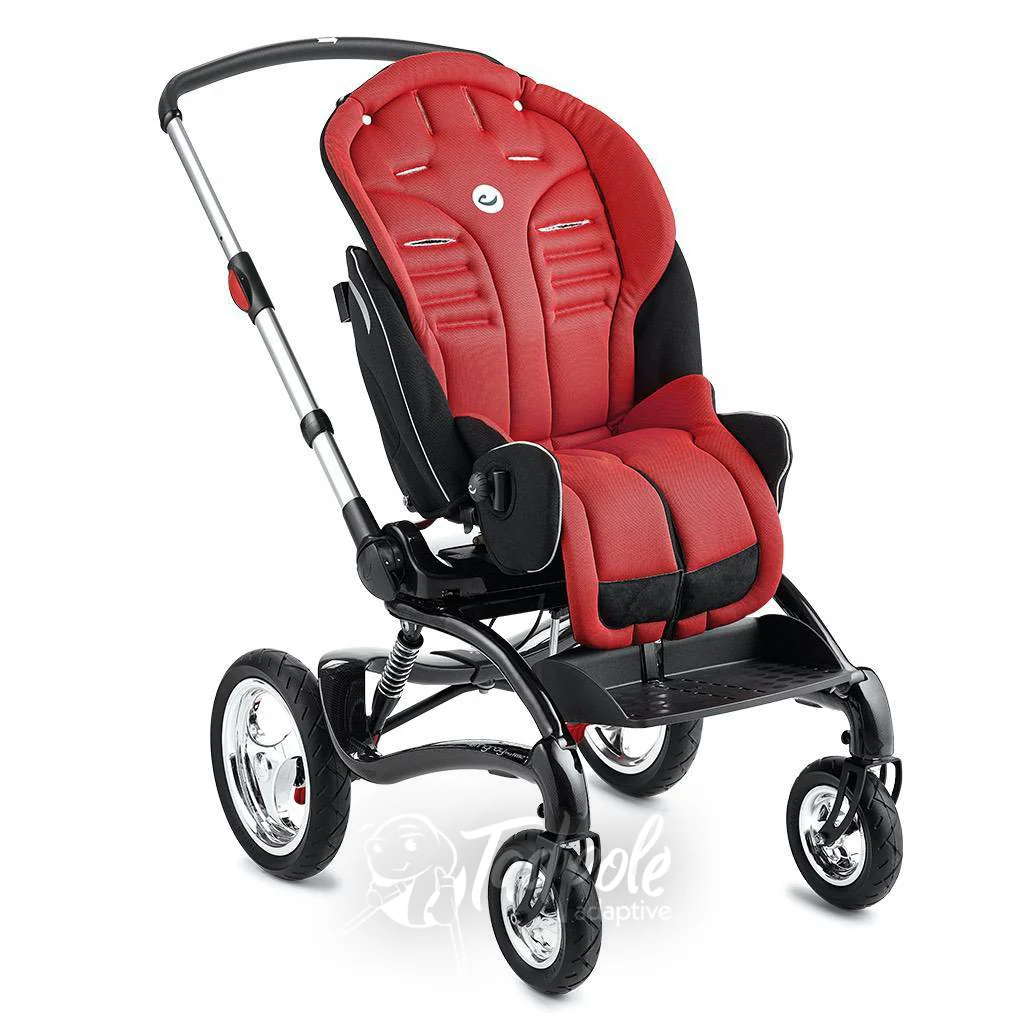

Stingray

Brand: R82

Stingray is a superbly stylish buggy with tool free adjustment of postural support and unique swivel action for forward/rearward facing options.

    The carbon frame with its trendsetting design encourages any family to go out together. The Stingray is in a league of its own.

    Adjustments, comfort and lightness of steering are keywords for this buggy. The Stingray makes it possible to change from forward to rearward facing with its 180° turnable seat when a child is seated. The child is always comfortably seated, whilst the various angle adjustments makes it easy to find exactly the position they need. The Stingray has supreme driving properties, fantastic suspension and with the safe and stable brakes, security always has pride of place.

    The Stingray is available in 2 sizes.

    Stingray seat Size 1

    Stingray seat Size 2

    Stingray Frame one size

    Item number 8711×20 8712×20 872xxxx
    Back height at shoulders (mm) 270-410 360-510
    Back width (mm) 450 520
    Backrest angle (°) 170 170
    Backrest height (mm) 410-550 500-650
    Effective back width (mm) 300 300
    Effective seat depth (mm) 180-300 250-400
    Effective seat width (mm) 300 350
    Folded height (mm) 285 305 490
    Folded length (mm) 575 575 900
    Folded width (mm) 420 475
    Foot plate (width & depth) (mm) 310×200
    Footrest to seat distance (mm) 140-450 140-450 140-450
    Leg to seat surface angle (°) (-30)-30 (-30)-30 (-30) – 30
    Length with large front wheels (mm) 840
    Length with turnable front wheels (mm) 740
    Mass device (kg) 5.5 6.5 13.5
    Maximum rated load (kg) 47.5 48.5 55.5
    Maximum user mass (kg) 40 40 40
    Maximum user mass in transportation (kg) 40 40 40
    Minimum turning radius (mm) 1020
    Overall height, push brace 15° (mm) 1000, 1030, 1060
    Overall width (mm) 590
    Seat plane angle (°) 45
    Seat surface height at front edge (mm) 520
    Static stability downhill (°) 10
    Static stability sideways (°) 10
    Static stability uphill (°) 10
