Anatomically-correct hip abduction of up to 60°
Wrap-around knee supports for improved comfort
Secure transfers
Individual footplates to accommodate leg length discrepancy

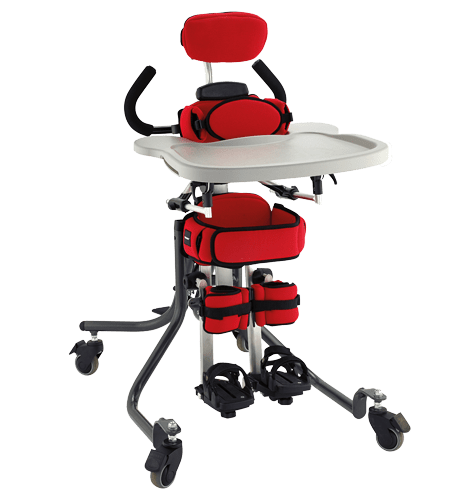

Squiggles+ Stander
Brand: Leckey
Retaining the best of the Squiggles stander, we have created the Squiggles+ with lots of added benefits including hip abduction of up to 60°.
- Specifications
| The Squiggles Stander Plus System | |
|---|---|
| Age (approx) | 1–5 |
| Max User Weight | 22kg/48.4lbs |
| User Height | Min 730mm / 28.5 inches Max 1110mm / 43.5 inches |
| Chest Support | Angle adjustment +/- 30˚ Depth adjustment 50mm / 2 inches |
| Chest Support Height (footplate to armpit) | Min 560mm / 22 inches Max 940mm / 37 inches |
| Chest Width (distance between laterals) | Min 160mm / 6.3 inches Max 230mm / 9 inches |
| Hip Support (height from footplate to mid buttocks) | Min 400mm / 15.7 inches Max 640mm / 25.1 inches |
| Distance between midline of knees | Min 140mm / 5.5 inches Max 215mm / 8.4 inches |
| Footplate Angle | Plantarflexion 10° / Dorsiflexion 10° |
| Tray Size | |
| Tray height – Prone (footplate to top of tray) | Min 555mm / 21.9 inches Max 825mm / 32.5 inches |
| Tray height – Supine (footplate to top of tray) | Min 480mm / 18.5 inches Max 825mm / 32.5 inches |
| Tray angle adjustment | Prone 30° / Supine 40° |
