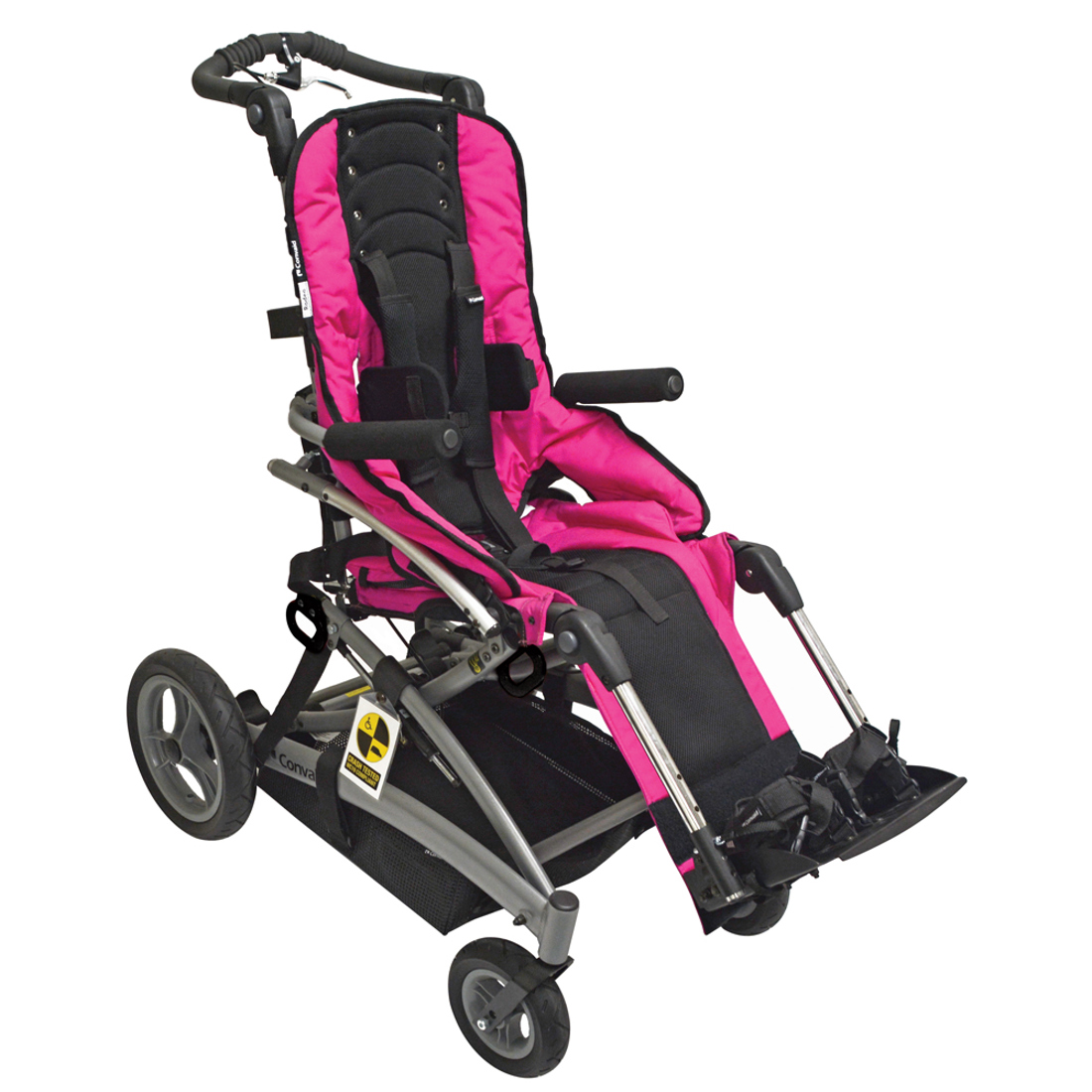

Rodeo

Brand: Convaid

The leader in tilt-in-space, compact-folding, lightweight, and durable positioning systems, the Rodeo is perfect for someone who needs more involved positioning and support.

    The Convaid Rodeo is a popular pediatric tilt-in-space wheelchair that is best-in-class, convenient, lightweight and folds compactly. The Rodeo provides up to 45° of adjustable tilt that offers pressure relief and upper body support. This tilt-in-space Convaid is fully customizable to meet user’s specific therapeutic needs and provides 5 years of growth capability through its seat depth feature. With 2 frame options available (with and without seating), the Rodeo is able to accommodate aftermarket and extensive seating needs.

    Rodeo’s Cordura upholstery comes in a wide selection of colors and is removable and fully washable. The Rodeo offers 90 to 110° of recline, allowing variance in the seat-to-back angle. The Convaid Rodeo is easy to fold for maximal portability, available in sizes 10, 12, 14, and 16 for up to 170-lbs. It comes with a transit option that meets WC19 transport safety standards. It is attractive, highly durable, provides therapeutic necessities, comes with a lifetime guarantee and is made in the USA.

    RD10

    RD12

    RD14

    RD16

    Folded height (inch) 17.5 17 18 18
    Folded length (inch) 33.5 34 34 40
    Folded width (inch) 21 23 25 27
    Foot plate angle (°) -40 -40 -40 -40
    Headrest extension (inch) 6 8 8 8
    Overall height (inch) 43 43 44 45
    Overall length (inch) 30.5 35 35 36
    Overall width (inch) 21 23 25 27
    Push handle adjustments (inch) 32-48.5 34.5-51 35-52 36-53.5
    Recline adjustment (°) 90° or 110° 90° or 110° 90° or 110° 90° or 110°
    Seat back height (inch) 21 22 24 25
    Seat depth (inch) 7-12 09-14 11-16 13-18
    Seat to flipped individual angle adjustable footplate (inch) 4.5-9.25 4.25-11 7.25-13.25
    Seat to flipped one piece angle adjustable footplate (inch) 5.25-11.25 5.25-11.25 7.25-13.25 9.25-15.25
    Seat to floor (inch) 20 21 22 22
    Seat to individual angle adjustable footplate (inch) 7-13 07-13 9.5-15.5 12-18
    Seat to one piece angle adjustable footplate (inch) 9-14 09-14 11-16 13-18
    Seat width (inch) 10 12 14 16
    Shoulder strap height (inch) 13-19 15-21 16-22 18-24
    Tilt in space tilt angle (°) 5° – 45° 5° – 45° 5° – 45° 5° – 45°
    Total weight (lbs) 29 33 37 39
    Weight capacity (lbs) 75 75 100 170
    Weight seat unit (lbs) 29 33 37 39
