Features:
– Rotation-In-Space: Instead of tilting the seat frame from an outside pivot-point the Quickie® IRIS™ actually rotates the seat frame around the users center-of-gravity. This rotational system provides the shortest possible wheelbase without compromising stability. It also insures a smooth and controlled rotation.
– The 60° & 40° Tilt Advantage: The Quickie® IRIS™ features three tilt ranges: -5° to 50°, 0° to 55°, and 5° to 60° on the standard 55° seat frame, and -5° to 35°, 0° to 40°, and 5° to 45° on the 40° seat frame. As the seat frame rotates past 45°, a significant amount of pressure transfers from the seat to the back. By providing up to 60° of tilt, the IRIS insures that the majority of pressure is removed from the ischial tuberosities. For individuals who only need positioning relief, the 40° tilt frame is ideal.
– Low Seat-To-Floor Height: The Quickie Iris now features a 12 1/2″ front seat-to-floor height. Using a drop seat, this distance can be lowered to an even lower 10 ½” seat-to-floor height. Low seat-to-floor height is critical for users who use foot propulsion.

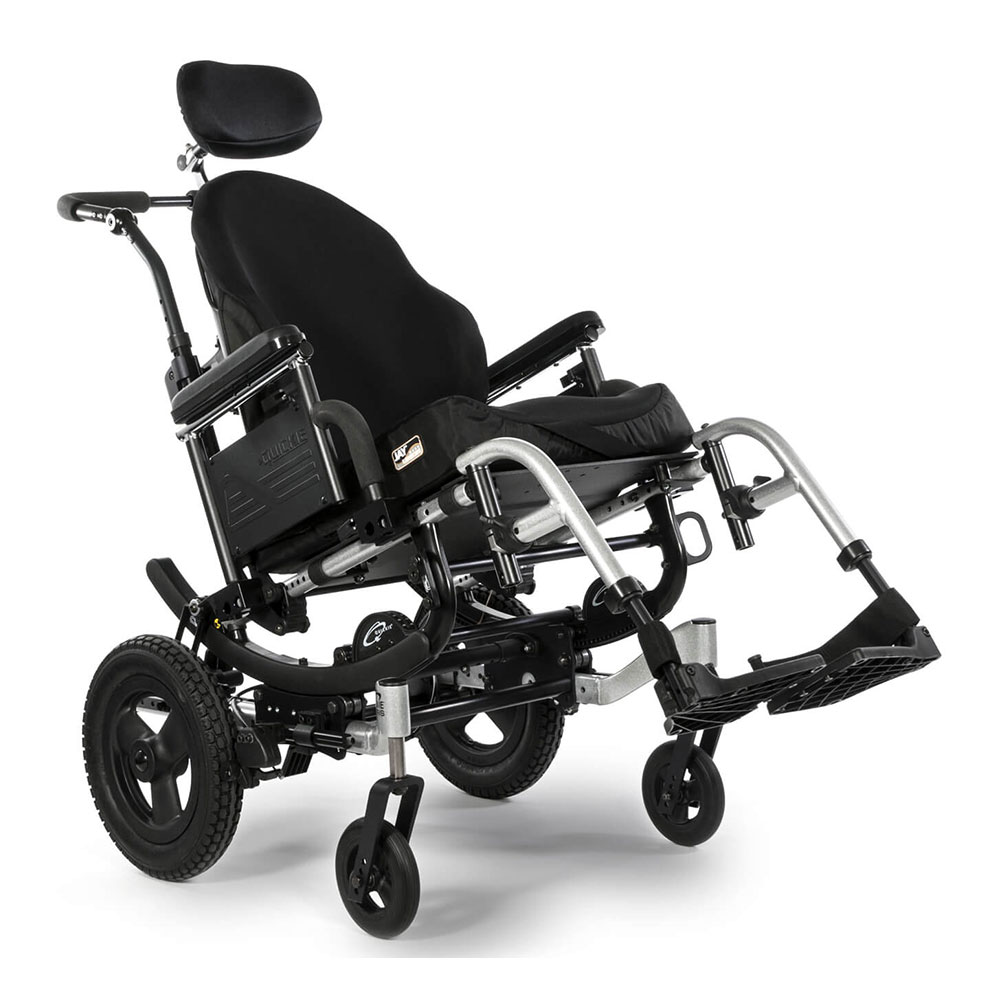

Quickie Iris
Brand: Sunrise
The Quickie IRIS rotational design is based on the idea of rotating the seat-frame around a user’s center-of-gravity. This combined with up to 60° of posterior rotation and hi-resolution adjustment, provides good control, maneuverability, and stability.
- Details
- Specifications
Dimensions | ||
Seat Width: | 14″ to 22″ | |
Seat Depth: | 14″ to 22″ | |
Front Seat-to-Floor Height: | 12.5″ to 19.5″ | |
Rear Seat-to-Floor Height: | 12.5″ to 19.5″ | |
Tilt Range: | 40° 55° 60° |
|
Back Height: | 15″ to 21″ 18″ to 24″ |
|
Back Angle Adjustment: | -30° to 5° | |
Camber: | -0° | |
Shipping Dimensions: | Boxed: 36″ L x 28″ W x 37″ H and 20″ L x 10″ W 20″ H Palletized: 47″ L x 40″ W x 54″ H |
|
Product Information | ||
Model Number: | EIZ4-2 | |
Starting Retail Price: | $4,848 | |
Performance/Weights | ||
Frame Type: | Frame Options Standard Heavy Duty Contrature Seat Frame Vent/Battery Base Tray |
|
Frame Material: | Aluminum | |
Transit: | Yes | |
User Weight Capacity: | Standard: 300 lbs. Heavy Duty: 400 lbs. |
|
Product Weight: | 38 lbs. | |
Average Shipping Weight: | Boxed: 90 lbs. and 15 lbs. Palletized: 150 lbs. |
As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
