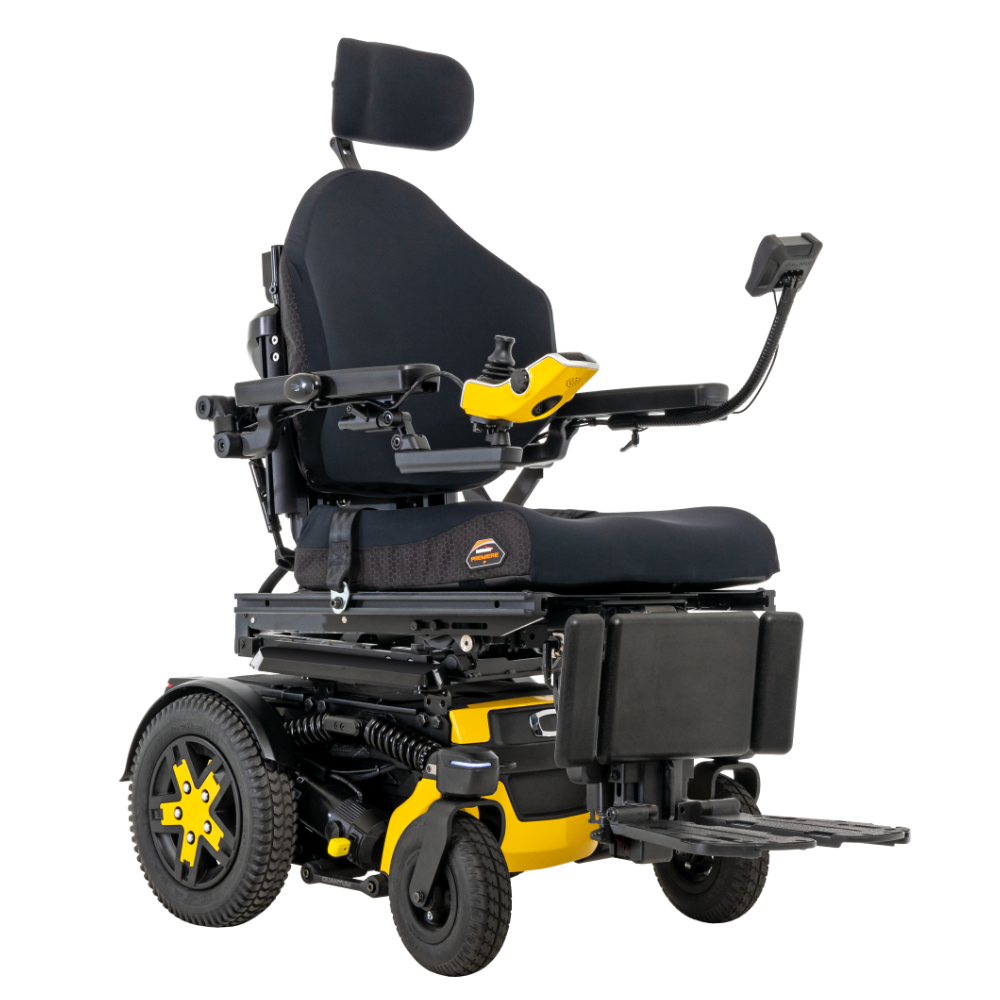

Quantum R-Trak Power Wheelchair

Brand: Pride

The R-TRAK’s Smooth Ride Suspension (SRS) technology provides stability for smooth obstacle transitions, making it more maneuverable than other rear-wheel drive power chairs.

Request Details

    The R-TRAK also makes for a more maneuverable driving experience compared to other rear wheel drive bases, as it boasts a narrow 24.2” base, providing greater environmental access. It also has a top speed of up to 11 km/h, or 5.6 km/h while elevated up to 10” with Safe Seat Elevation.

    It comes standard with 4-pole motors, integrated switch lights, and 14 unique color options.

    The R-TRAK is also compatible with the NE+ Controller or the Q-Logic 3 Expandable Drive Control System. Available seating includes TRU-Balance® 3, Contoured Seating, or TRU-Balance® Flex.

    Built for everyday use, engineered to withstand outdoor obstacles, and designed to provide the most comfortable rear-wheel drive experience ever, the R-TRAK establishes a new standard in power mobility.

    Class of Use B (Group 3)
    Weight Capacity 300 lbs. (136 kg/21 stone 6 lbs.)
    Maximum Speed Up to 7 mph (11 km/h)
    Up to 3.5 mph (5.6 km/h) with 10-in. lift
    Ground Clearance 3.97 in. (101 mm) at battery tray
    Turning Radius 25.7 in. (653 mm)
    Overall Size Stowage Length: 34.8 in (884 mm) without front riggings
    Length: 44.5 in. (1130 mm) with front riggings
    Width: 24.2 in. (616 mm)
    Drive Wheels 14 in. (356 mm), solid or pneumatic
    Caster Wheels 9 in. (229 mm), solid
    Anti-tip Wheels 4 in. (102 mm), flat free
    Range Up to 16.34 miles (26.3 km) with Group 24 batteries
    Component Weights Base: 128 lbs. (58 kg)
    Batteries: Group 24: 51.5 lbs. (23.36 kg) each (standard)
    Drivetrain Two motor, rear-wheel drive
    Brakes Electronic regenerative, disc park brake
    Batteries Two 12 volt, Flat top deep-cycle
    Group 24: C20 75 Ah, C5 62 Ah
    Battery Charger 8 amp, off-board
    Freewheel Operational Force Less than 60 N
    Drive Control Operational Force Less than 5 N
    Maximum Rated Slope 7.5° (13.2%)
    Maximum Obstacle Climbing Ability (Ascending and Descending) 2.36 in. (60 mm)
    Measured Sound Level (A-weighted) Less than 65 dB

    1. Varies with base model, user weight, terrain type, battery amp hour rating (Ah), battery charge, battery condition,
    motors, controller type, tire type, and tire condition. This specification is subject to a variance of +10%, -5%.

    2. Due to manufacturing tolerances and continued product improvement, this specification can be subject to a variance of
    (+ or -) 3%.

    3. AGM, Gel-Cell, or Hybrid Gel (Hybrid Gel is defined as Nano Silica Gel Electrolyte with High Quality Glass Mat
    Separators) type required. See “Batteries and Charging.”

    4. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical
    calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.

    5. Battery weight may vary based on manufacturer.

    6. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
    NOTE: This product conforms to all applicable ANSI/RESNA, ISO 7176 Series, AS/NZS 3695.2, and
    EN12184 standards. All specifications subject to change without notice.
