The Q6 Edge® Z Power Chair utilizes powerful 4-pole motors for maximum torque and Mid-Wheel 6® Design for aggressive outdoor performance and precision indoor maneuverability. Available with optional iLevel® power adjustable seat height, the Q6 Edge Z Power Wheelchair accepts a broad range of exclusive seating and electronics options for unparalleled adaptability and rehab capability.

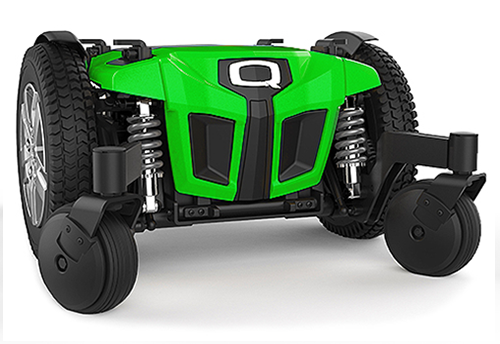

Quantum Q6 Edge Z Power Wheelchair
Brand: Pride
The Q6 Edge® Z Power Chair utilizes powerful motors and Mid-Wheel 6® Design for paramount performance and maneuverability. The Q6 Edge Z offers a broad range of seating and electronics options. It is the most versatile power wheelchair offered by OHH
- Specifications
| Model | Q6 Edge® 2.0 |
| Drive Configuration | Mid-wheel drive |
| Drive Wheels | 14″ Solid Optional: 14″ Pneumatic Optional: 14″ Knobby |
| Caster Wheels | Front: 6″ Solid1 Rear: 6″ Solid1 |
| Anti-Tip Wheels | N/A |
| Maximum Speed4 | Up to 6.25 mph13 |
| Ground Clearance | 2.7″ (battery tray) |
| Turning Radius5 | 20.5″ |
| Overall Length11 | 32.23″ |
| Base Width | 24.4″ |
| Seating Sizes | TRU-Balance® 3 Synergy®/Static: W: 10-22″ D: 10-22″ Power Tilt: W: 12-22″ D: 12-22″ Lift & Tilt: W: 12-22″ D: 12-22″ TRU-Balance® Flex Seat W: 15-22″ D: 15-20″ |
| Seat-to-Floor Heights16,17 | TRU-Balance® 3 Synergy®: 15.875-20.875″ Static: 16.5-18.5″ Lift & Tilt8: 17.5-19.5″ TRU-Balance® Flex Seat: 16.5-18.25″ |
| Battery Size6 | NF-22 (2) |
| Battery Weight14 | 38 lbs. |
| Available Electronics12 | 75A Q-Logic NE 75A Q-Logic NE+ 120A Q-Logic 3 EX 120A Q-Logic 3e |
| Battery Charger | 8A Off-board |
| Motor Packages | 2-pole Mid-Wheel 6® |
| Weight Capacity7 | 300 lbs. |
| Base Weight | 138.6 lbs. |
| Medicare Code Coverage | Group 3: Standard (K0848/K0849) Single Power (K0856/K0857) Multiple Power (K0861) |
Notes:
1 Standard
2 Optional
4 Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.
5 Without front riggings
6 Battery capacity may change when adding power positioning systems.
7 Weight capacity is dictated by the selection of seating.
8 All measurements +/- 1/8″ with 18″ x 18″ seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8″ with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified.
10 Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details.
11 Without foot riggings.
12 All Quantum Rehab® units can be ordered with specialty controls.
13 6.25 mph speed available only with Q-Logic 3.
14 Battery weight may vary +/- 3 lbs. based on manufacturer.
16 Seat-to-floor heights are measured with the unit unloaded.
17 16.5″ seat-to-floor height is not available with power tilt or iLevel®. 19.5″ seat-to-floor height is not available with static seat or power recline.
