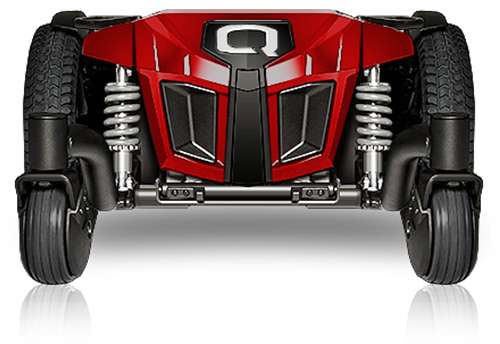

Quantum Q4 Power Wheelchair

Brand: Pride

With features such as Mid-Wheel 6® Drive Design and ATX Suspension, the Q4 is engineered for tight-quarter maneuverability. The Q4 delivers rehab capability and performance at an excellent value.

Request Details

    With features like Mid-Wheel 6® Drive Design and ATX Suspension, the Q4 is engineered for tight-quarter maneuverability. The Q4 delivers rehab capability and performance at an amazing value.

    Model Q4
    Drive Configuration Mid-wheel Drive
    Drive Wheels Standard: 14″ flat free
    Caster Wheels Front: 6″ Solid Rear: 6″ Solid
    Anti-Tip Wheels N/A
    Maximum Speed4 Up to 9.7 km/h with optional high-speed motor
    Ground Clearance 2.5″ at caster pivot
    Turning Radius5 20
    Overall Length18 35.5″
    Base Width 24″
    Seating Sizes TB Flex: W: 15-22″; D: 15-20″ TB-3: W: 16-20″; D: 16-20″
    Seat-to-Floor Heights16 TB Flex: 16.5” – 18.25” TB-3: 17.3” – 19.3”
    Manual Recline10 Yes
    Battery Size6 NF-22
    Battery Weight14 38 lbs.
    Available Electronics12 100A Q-Logic 3 EX; 75A NE+
    Battery Charger 8A Off-board
    Motor Packages 4-Pole Mid-Wheel 6
    Weight Capacity7 300 lbs.
    Base Weight 138.6 lbs.

    Notes:
    1 Standard
    2 Optional
    3 Requires HD Suspension
    4 Speed varies depending on the user’s weight, terrain type, battery charge, battery condition, and tire pressure.
    5 Without front riggings
    6 Battery capacity may change when adding power positioning systems.
    7 Weight capacity is dictated by the selection of seating.
    8 All measurements +/- 1/8″ with 18″ x 18″ seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8″ with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified.
    9 250 lbs. maximum weight capacity with TRU-Balance® Systems
    10 Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details.
    11 Requires Group 34 batteries
    12 All Quantum Rehab® Canada units can be ordered with specialty controls
    13 Required with high-speed motors
    14 Battery weight may vary +/- 3 lbs. based on manufacturer.
    15 Weight capacity is reduced to 400 lbs. with the 10″ Lift.
    16 Seat-to-floor heights are measured with the unit unloaded.
    18 Without foot riggings.
