Highly adaptable, the J6 Power Wheelchair accepts a wide range of seating and electronics options while its powerful drivetrain delivers high-performance torque.

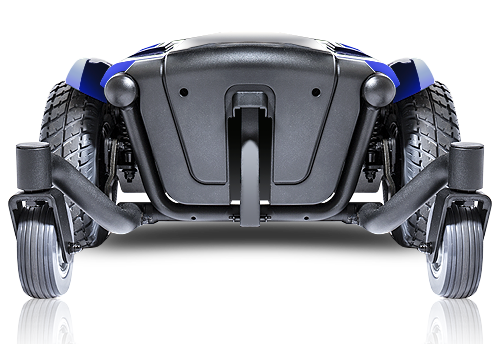

Quantum J6 Power Wheelchair
Brand: Pride
The compact J6 Power Chair is the ultimate choice for clients who demand the superb stability of Mid-Wheel 6® Design and tight-quarter maneuverability.
- Specifications
| Model | J6 |
| Drive Configuration | Mid-wheel Drive |
| Drive Wheels | 10″ Solid Optional: 10″ Pneumatic |
| Caster Wheels | Front: 5″ Solid Rear: 6″ Solid |
| Anti-Tip Wheels | N/A |
| Maximum Speed4 | Up to 4 mph |
| Ground Clearance | 2.5″ (frame) |
| Turning Radius5 | 22″ |
| Overall Length11 | 34.74″ without foot riggings |
| Base Width | 23.19″ |
| Seating Sizes | TRU-Balance® 3 Synergy®: W: 10-20″ D: 10-20″ Static: W: 10-20″ D: 10-20″ Power Tilt: W: 14-20″ D: 14-20″ Lift & Tilt: N/A |
| Seat-to-Floor Heights16 | TRU-Balance® 3 Synergy®: 15.75-17.5″8 Static: 16.75″8 Power Tilt8: 16.75″ Lift & Tilt8: N/A |
| Battery Size6 | U-1 |
| Battery Weight14 | 23.4 lbs. |
| Available Electronics12 | 70A Q-Logic 2 70A Q-Logic NE 70A Q-Logic NE+ |
| Battery Charger | 5A Off-board |
| Motor Packages | 2-Pole 4 mph |
| Weight Capacity7 | 300 lbs.9 |
| Base Weight | 100.2 lbs. |
| Medicare Code Coverage | Group 2: Standard (K0822/K0823) Single Power (K0835) |
Notes:
1 Standard
2 Optional
3 Requires HD Suspension
4 Speed varies with user weight, terrain type, battery charge, battery condition, and tire pressure.
5 Without front riggings
6 Battery capacity may change when adding power positioning systems.
7 Weight capacity is dictated by the selection of seating.
8 All measurements +/- 1/8″ with 18″ x 18″ seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8″ with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified.
9 250 lbs. weight capacity with TRU-Balance® Systems
10 Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details
11 Without foot riggings
12 All Quantum Rehab® units can be ordered with specialty controls
13 Required with high-speed motors
14 Battery weight may vary +/- 3 lbs. based on the manufacturer.
15 Weight capacity is reduced to 400 lbs. with the 10″ Lift.
16 Seat-to-floor heights are measured with the unit unloaded.
