The design of the Edge® 3 is for the most advanced power chair experience ever! Upgraded SRS (Smooth Ride Suspension) provides a smooth, comfortable ride with advanced stability. Optional iLevel® is available at 7 km/h with up to 12″ of power adjustable seat height. Standard features include front and rear LED fender lights, a USB charger, and drive wheel colour accents. The Edge® 3 is available in a total of 20 colour options, including seven brand-new, bold colours.

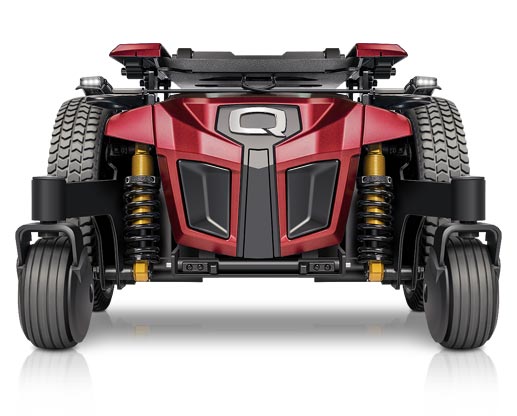

Quantum Edge 3 Power Wheelchair
Brand: Pride
With features like upgraded SRS (Smooth Ride Suspension), fender lights, a USB charger, and drive wheel colour accents, the Edge 3 is the best selling power chair at OHH.
- Specifications
| Model | Q6 Edge 3 |
| Drive Wheels | 14″ solid Optional: 14″ pneumatic |
| Caster Wheels | Front: 6″ solid Rear: 6″ solid |
| Maximum Speed4 | Up to 10 km/h Up to 7 km/h with iLevel activated |
| Ground Clearance | 2.7″ (battery tray) |
| Turning Radius5 | 20.5″ |
| Overall Length | 32.23″ without front riggings |
| Base Width | 24.4″ |
| Seating Sizes | Synergy®/TRU-Balance® 3 Static Seat: W: 10-22″; D: 10-22″ TRU-Balance® 3 Power Tilt: W: 12-22″; D: 12-22″ TRU-Balance® 3 Tilt and iLevel®: W: 12-22″; D: 12-22″ TRU-Balance® Flex Seating: W: 15-22″; D: 15-20″ |
| Seat-to-Floor Heights16 | Synergy®/TRU-Balance® 3 Static Seat: 16.5-18.5″ TRU-Balance® 3 Power Tilt: 17.5-19.5″ TRU-Balance® 3 Tilt and iLevel®: 17.5-19.5″ TRU-Balance® Flex Seating: 16.5-19.5″ |
| Manual Recline10 | Yes |
| Battery Size6 | NF-22 (2) |
| Battery Weight14 | 38 lbs. each |
| Available Electronics12 | 120A Q-Logic 3 EX 75A Q-Logic 2 NE 75A Q-Logic 2 NE+ |
| Battery Charger | 8A off-board |
| Motor Packages | 2-Pole, Mid-Wheel 6® |
| Weight Capacity7 | 300 lbs. |
Notes:
4 Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.
5 Without front riggings
6 Battery capacity may change when adding power positioning systems.
7 Weight capacity is dictated by the selection of seating.
10 Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details.
12 All Quantum Rehab® units can be ordered with specialty controls.
13 10 km/h speed available only with Q-Logic 3.
14 Battery weight may vary +/- 3 lbs. based on manufacturer.
16 Seat-to-floor heights are measured with the unit unloaded.
