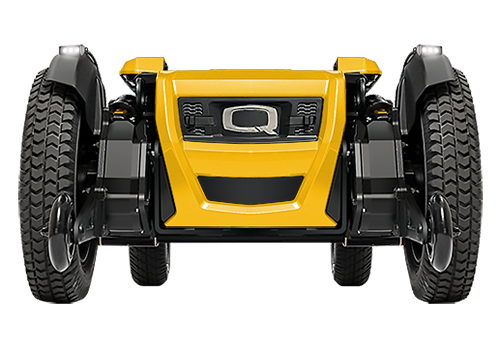

Quantum 4Front2 Power Wheelchair

Brand: Pride

The 4Front® 2 is the next generation of the 4Front® Power Chair! New Smart Traction Control (STC), along with Smooth Ride Suspension (SRS), provide stability for smooth obstacle transitions and unmatched driving performance.

    The 4Front® 2 is the next generation of the 4Front® Power Chair! New Smart Traction Control (STC), along with Smooth Ride Suspension (SRS), provide stability for smooth obstacle transitions and unmatched driving performance. Additional new features include 4-pole motors and redesigned caster arms for improved durability and aesthetics and reduced weight.

    In this new and improved model, you will find upgraded features along with the hallmarks of the original 4Front: front-wheel drive, smooth ride suspension, and unprecedented comfort and ride quality.

    All-new 4-pole motors mean a higher top speed of 10 km/h, more low-end torque, and improved brake release positioning to minimize accidental damage.

    Redesigned caster arms with dual-sided forks are lighter and more reliable, providing improved power base durability and better aesthetics.

    Model 4Front® 2
    Drive Configuration Front-wheel drive
    Drive Wheels Standard: 14″ flat free
    Optional: 14″ knobby/pneumatic
    Caster Wheels Rear: 9″ flat free
    Anti-Tip Wheels N/A
    Maximum Speed4 Up to 10 km/h
    Up to 5.6 km/h when elevated
    Ground Clearance 3.15″ at battery tray
    Turning Radius5 25.9″
    Overall Length11 39.9″ without front riggings
    Base Width 24″
    Seating Sizes TRU-Balance® 3
    Static Seat: W: 12-22″ D: 12-22″
    Power Tilt: W: 12-22″ D: 12-22″
    Power Lift & Tilt: W: 12-22″ D: 12-22″
    TRU- Balance® Flex
    Width: 15-22″ Depth: 15-20″
    Seat-to-Floor Heights TRU-Balance® 3
    Static Seat: 15.2-17.25″ (not available with Synergy®)
    Power Tilt: 17.5-19.5″
    Power Lift & Tilt: 17.75-19.75″
    TRU- Balance® Flex
    Lowest, middle, highest
    Battery Size6 Group 24 or Group 34
    Battery Weight14 Group 24: 51.5 lbs.
    Group 34: 44.8 lbs.
    Available Electronics12 120A Q-Logic 3e (standard)
    120A Q-Logic 3e (optional)
    Battery Charger 8A Off-board
    Motor Packages 4-pole, front-wheel drive
    Weight Capacity7 300 lbs.
    Base Weight 130 lbs.

    Notes:
    1 Standard
    2 Optional
    3 Requires HD Suspension
    4 Speed varies with user weight, terrain type, battery charge, battery condition, and tire pressure.
    5 Without front riggings
    6 Battery capacity may change when adding power positioning systems.
    7 Weight capacity is dictated by the selection of seating.
    8 All measurements +/- 1/8″ with 18″ x 18″ seat, fixed towers, 300 lbs. weight capacity, and solid tires (add 3/8″ with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified.
    9 250 lbs. weight capacity with TRU-Balance® Systems.
    10 Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details.
    11 Requires Group 34 batteries
    12 All Quantum Rehab® units can be ordered with specialty controls.
    13 Required with high-speed motors.
    14 Battery weight may vary +/- 3 lbs. based on manufacturer.
    15 Weight capacity is reduced to 400 lbs. with the 10″ Lift.
    16 Seat-to-floor heights are measured with the unit unloaded.
    18 Without foot riggings.
