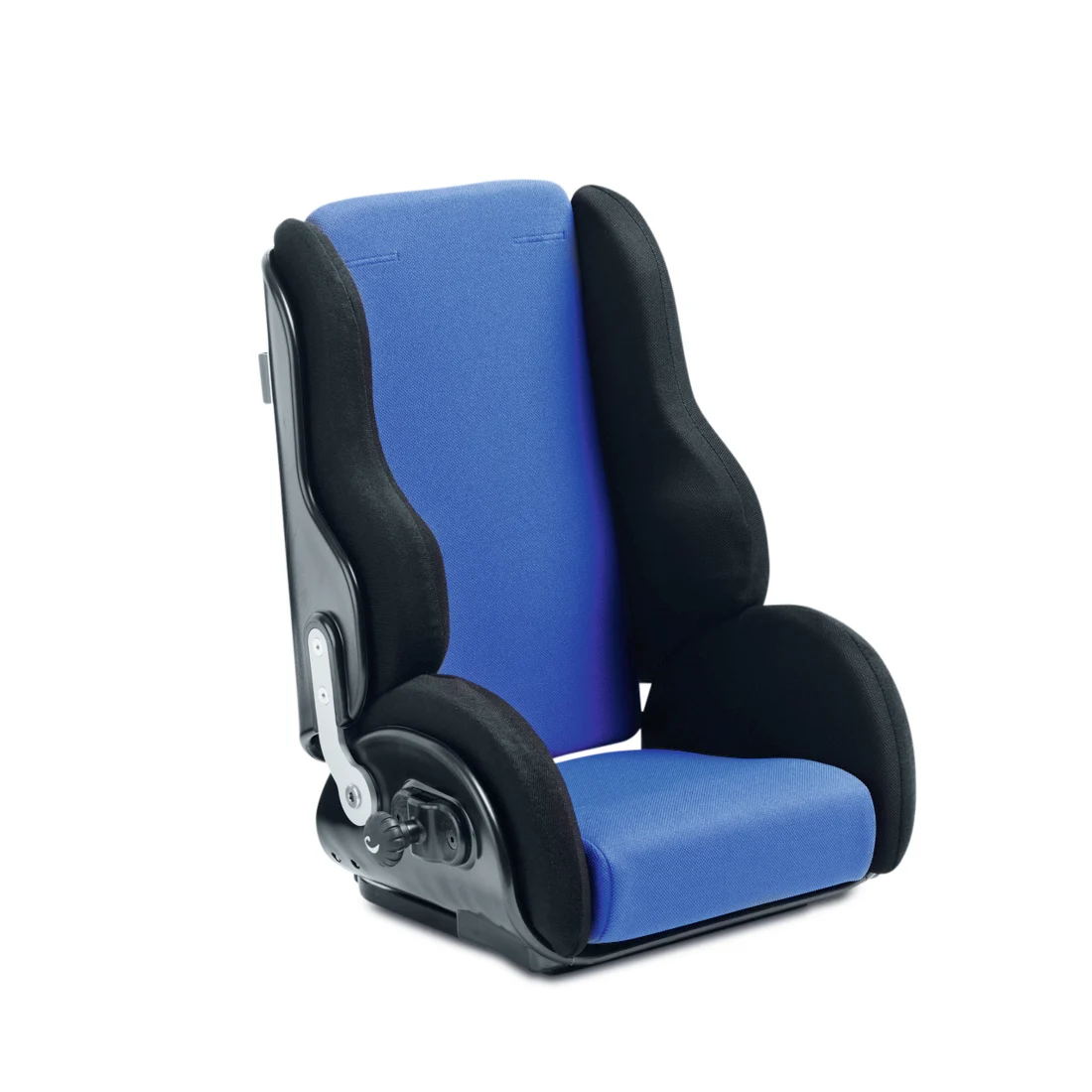

Panda Futura

Brand: R82

The Panda Futura is a modular seating system for both indoor and outdoor use.

Request Details

    The Panda Futura seat is available in two different versions: Standard and Active. The Standard seat is primarily for children with the need of support around arms and shoulders. The Active seat is for the active children who need more freedom of movement.

    The Panda Futura Standard is available in 5 sizes accomodating children aged approx. 1 to 12 years. The Panda Futura is available in 4 sizes as an Active version and will accomodate children aged approx. 1 to 12 years.

    The Panda Futura seat complies with ISO 16840-4.

    Panda active, size 2

    Panda active, size 2½

    Panda active, size 3

    Panda active, size 4

    Panda standard, size 1

    Panda standard, size 2

    Panda standard, size 2½

    Panda standard, size 3

    Panda standard, size 4
    Item number 890121-xx 890161-xx 890131-xx 890141-xx 890211-xx 890221-xx 890261-xx 890231-xx 890241-xx
    Armrest to seat distance (mm) 130-180 130-180 130-240 130-240 130-180 130-180 130-180 130-240 130-240
    Backrest angle (°) (-4) – 27 (-10) – 20 (-9) – 27 (-6) – 17 (-3) – 28 (-15) – 32 (-10) – 35 (-5) – 36 (-5) – 30
    Backrest height (mm) 350 380 400 450 290 390 410 440 535
    Effective seat depth (mm) 240 280 310 360 220 240 280 310 360
    Effective seat width (mm) 220 250 290 320 220 220 250 290 320
    Front location of arm rest structure (mm) 280 280 370 480 280 280 280 370 370
    Mass device (kg) 5.2 5.6 6.2 7.5 5.7 5.7 6.2 7.3 8.7
    Maximum rated load (kg) 37.2 57.6 58.2 69.5 37.7 37.7 58.2 59.3 70.7
    Maximum user mass (kg) 30 50 50 60 30 30 50 50 60
    Maximum user mass in transportation (kg) – – – – – 30 50 50 57
