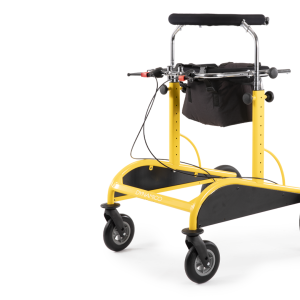

Pacer Gait Trainer

Brand: Rifton

Dynamic.
Ready to go everywhere.

    Gait training has come a long way since we introduced our first model in the 1980s, and our Pacer continues to evolve and improve to meet our customers’ needs. Over the years your suggestions have helped us keep our design at the cutting edge.

    Item Dimensions (inches) Mini Pacer (K610) Small Pacer (K620) Medium Pacer (K630) Large Pacer (K640) XL Pacer (K650)
    Elbow height 15½ – 20½ 18½ – 27½ 24 – 35 32 – 47 34 – 49
    Floor to top of arm prompt 15½ – 20½ 19 – 29 24 – 35 32 – 47 34 – 49
    Floor to top of MPS (not tilted)* N/A 10 – 20 9½ – 23½ 17 – 35 19½ – 37½
    Overall width 20½ 23 Standard base: 26
    Utility base: 30
    Standard base: 28
    Utility base: 32
    31½
    Overall length 22½ 26 Standard base: 30
    Utility base: 36
    Standard base: 36
    Utility base: 40½
    39¾
    Frame height 12½ 16 – 21 21½ – 27 28½ – 38½ 31 – 41
    Base height (without upper frame) N/A 11 14½ 16 18½
    Frame weight (lbs) 10¼ Base: 11½
    Standard upper: 6
    Dynamic upper: 7½
    Standard base: 15
    Utility base: 18½
    Standard upper: 7½
    Dynamic upper: 11½
    Standard base: 15½
    Utility base: 19¼
    Standard upper: 9½
    Dynamic upper: 13½
    Base: 22½
    Standard upper: 11
    Dynamic upper:15
    Dynamic upper movement N/A Vertical: 1¼
    Horizontal: 1½
    Vertical: 2
    Horizontal: 2
    Vertical: 2
    Horizontal: 2
    Vertical: 2
    Horizontal: 2
    Caster diameter 4 4 Standard base: 5½
    Utility base front casters: 8
    Utility base back wheels: 11½
    Standard base: 5½
    Utility base front casters: 8
    Utility base back wheels: 11½
    Standard base: 5½
    Utility base front casters: 8
    Utility base back wheels: 11½
    Maximum working load (lb) 50 75 150 200 250

    *This measurement is taken at the lowest frame and MPS height, and the highest frame and MPS height.
