Orca/Penguin

Brand: R82

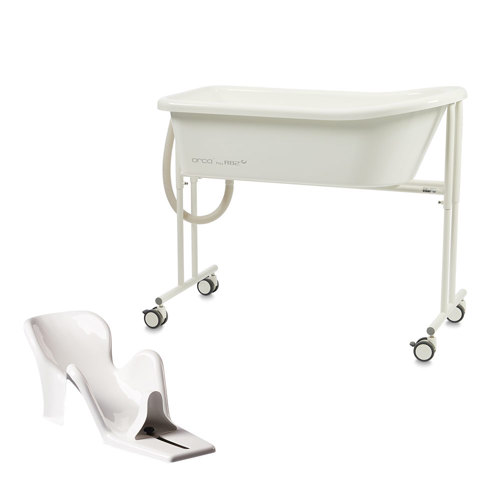

The Penguin can be used in the Orca bathtub, but fits ordinary bathtubs as well. With its suction cups, the Penguin sits firmly on most smooth surfaces.
    The Orca is a spacious bathtub that provides comfort and freedom of movement for your child. Functionality is an integral feature in the design of the Orca bathtub. It has smooth round edges and a space saver within the area around and beneath the bathtub. The Orca has a hygienic and smooth surface bathtub making it easy to clean. The frame can be taken apart to minimise space for storage or transportation. The Penguin makes bathing comfortable for the child. It provides support for head and trunk together with great freedom of movement for arms and legs so that the child can stay longer in the bath. With its adjustable abduction block it easily fits the individual child.
    Features:
    -Excellent working conditions
    The height adjustable frame allows for both standing and sitting care. Free space on the side makes it possible to get close to the child providing optimum comfort. Four smooth running wheels makes it easy to move the bathtub around – even with water in it.
    -Easy to handle
    The frame can be taken apart to minimise space for storage or transportation. The smooth and hygienic surface makes it very easy to clean.
    -Freedom of movement
    Mount a bathing seat in the Orca for added trunk support and freedom of movement. Both the small Flamingo and the Penguin bathing seat fits perfectly in the bathtub.
    -Penguin – suction cups
    Secures the Penguin in the bathtub.

    Orca

    Penguin

    Item number 87550 87702
    Bathtub height, inside (mm) 290
    Bathtub length, inside, bottom (mm) 860
    Bathtub length, inside, top (mm) 1030
    Bathtub width, inside, bottom (mm) 400
    Bathtub width, inside, top (mm) 470
    Frame height (mm) 940-1150
    Height (mm) 260
    Length (mm) 1110 800
    Length, abduction block to top (mm) 560-720
    Mass device (kg) 17 1.35
    Max load (kg) 120
    Maximum rated load (kg) 69 23.35
    Maximum user mass (kg) 50 20
    Minimum turning diameter (mm) 675
    Overall height (mm) 940-1150 260
    Overall width (mm) 550 330
    Required width of right angled corridor (mm) 1350
    Total mass (kg) 16
