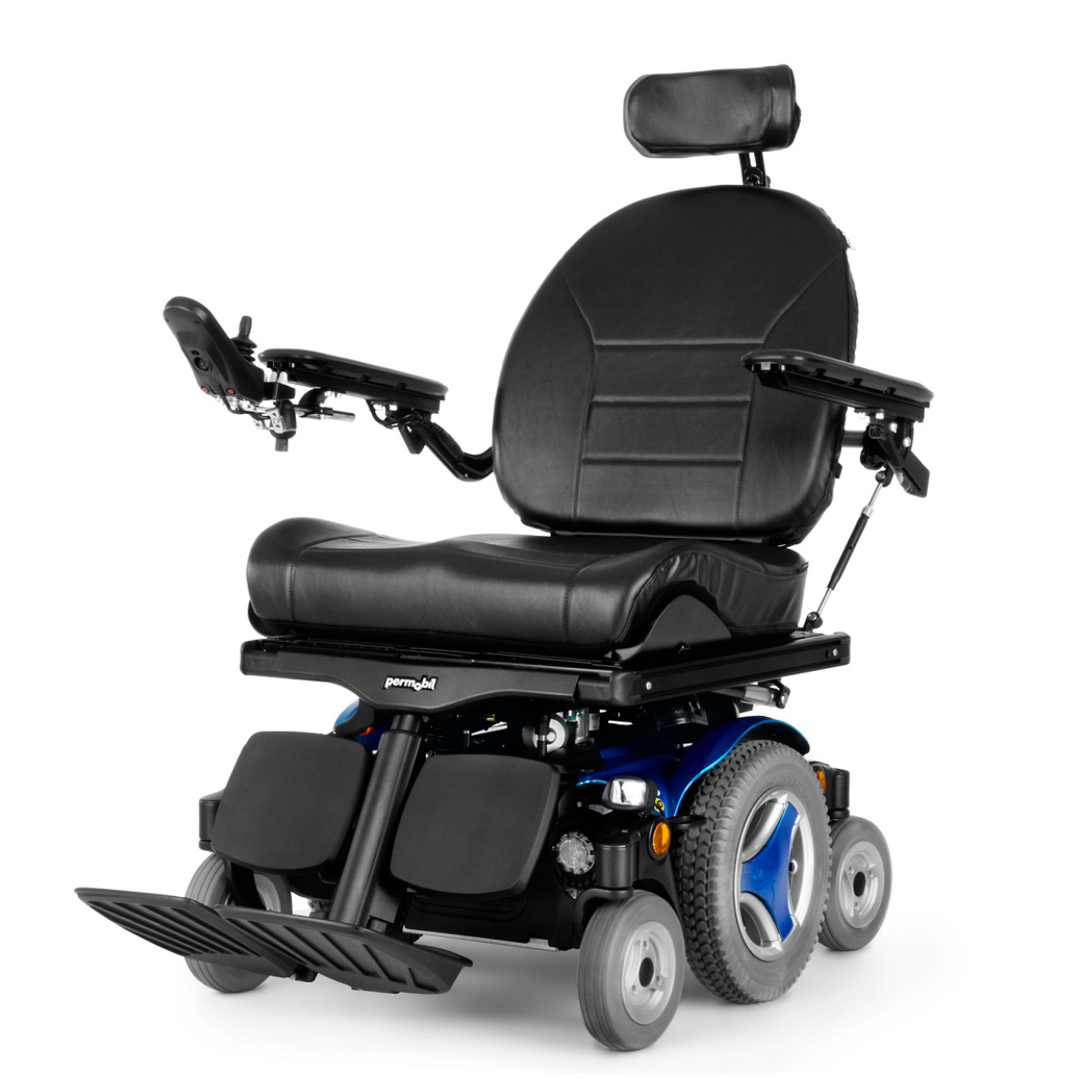

Introducing the new M300 Corpus® HD, a heavy duty power wheelchair designed specifically for users up to 450lbs. The M300 base is highly maneuverable and has been both extended and widened for the HD model, while the suspension has been strengthened for an overall more stable platform. The HD also has extremely sturdy arm and legrests as well as wider footplates to create additional room and comfort. The M300 Corpus® HD features the world-renowned Corpus seating system for the ultimate in comfort with an unmatched power tilt range of 0 — 45° and an unprecedented recline of 85 — 150°. The ultra-strong actuators allow users to safely elevate their feet above their hearts, while the durable mesh-style upholstery helps keep moisture away from the body. With the legendary power and toughness of Permobil, the M300 Corpus® HD is built to withstand the rigors of any heavy duty lifestyle.
- Specifications
| Maximum User Weight | 450 lb |
| Maximum Speed | 5 mph |
| Minimal Seat Width | 19” |
| Maximum Seat Width | 25” |
| Minimal Seat Depth | 19” |
| Maximal Seat Depth | 25” |
| Driving Range | 13 mi |
| Alternate Driving Range | 20 mi |
| Base Width | 26” |
| Base Length | 38 |
| Minimum Turning Radius | 22” |
| Ground Clearance | 3” |
| Drive Electronics | 120A R-net |
| Battery Type | Group 24 Gel (Driving Range 20 miles), Group 34 Gel (Driving Range 13 miles) |
| Seat To Floor Height | 18″, 19″, 20″ (elevator), and 18″, 19″, 20″ (fixed) |
| Power Tilt Options | 0°-45° (Posterior) |
| Recline Options | 85°-120° (manual), and 85°-150° (power) |
| Legrest Elevation | 85°-175° (manual), and 85°-175° (power) |
| Armrest Pad Lengths | 13″, 16″, 18″ |
| Backrest Heights | 21″, 24″-29″ (by 1″ incr.) |
| Optional Seat Elevator | 8″ |
| Weight Including Batteries | 425 lb |
