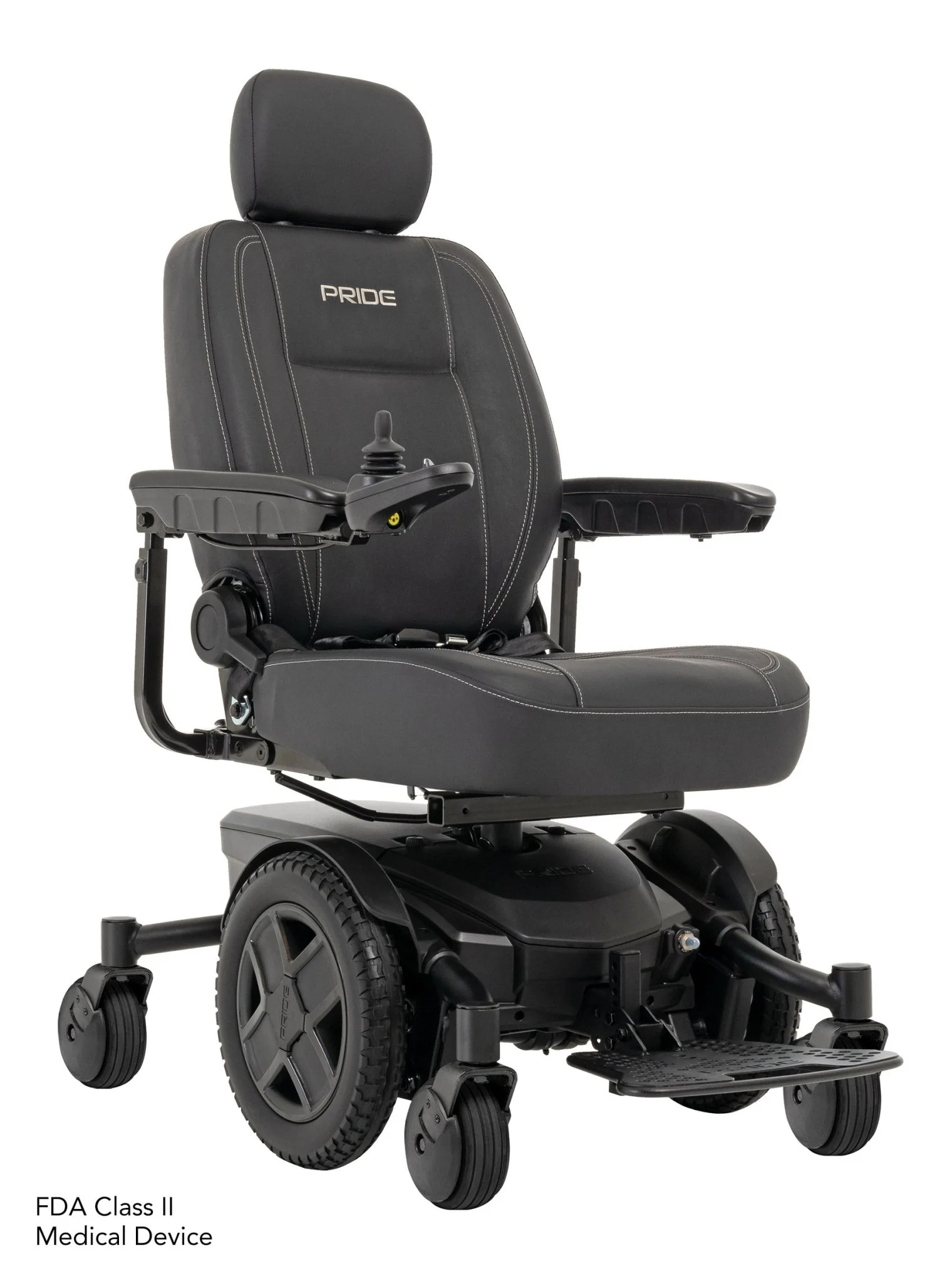

Jazzy Evo 613 Li Power Wheelchair

Brand: Pride

The Jazzy® EVO 613 series is here! The Jazzy® EVO 613 series provides the freedom to navigate small spaces and tight corners indoors with a narrow base width of only 22”. The Jazzy® EVO 613Li uses a lithium-ion battery that provides longer life and more convenient charging.

    300 lb. weight capacity
    Narrow base width of only 22″
    Maximum speed up to 5.1 mph
    3″ Ground clearance
    13″ solid drive tires
    Per charge range up to 17 miles with U1 SLA batteries and up to 21 miles with lithium ion (200 lbs.)
    Mid-wheel 6 Technology offers tight turning radius around doorways and corners
    Pride’s patented Active-Trac (ATX) Suspension ensures a smooth ride experience over uneven surfaces
    Memory foam high-back seat with single seat post allows the user to swivel
    Available depth-adjustable seat sizes: 16″ W x16″-18″ D, 18″ W x 18″-20″ D, 20″ W x 18″-20″
    Height, width, and angle adjustable armrests
    Flip-up, height, angle, and depth adjustable foot platform
    Removable matte-finish color-through shrouds

    CATEGORY SPECIFICATION
    Model
    Jazzy® EVO 613/ Jazzy® EVO 613 Li
    Weight Capacity 300 lbs.
    Turning Radius3 22″
    Width3 22″
    Length3 41″ w/footplate 35″ w/o footplate
    Maximum Speed2 Up to 5.1 mph
    Ground Clearance3 3″ at motor bracket
    Front Wheels 5″ solid
    Drive Wheels 13″ solid
    Rear Wheels 5″ casters
    Drivetrain Two motor, in-line, mid-wheel drive
    Braking System Regenerative and electro-mechanical
    Suspension Type Active-Trac® (ATX)
    Standard Seat Sizes High-back
    Black vinyl
    16″x16″-18″, 18″x18″-20″, 20″x18″-20″
    Seat-to-Floor Range 19.75″-21.25″
    Seat Weight(s)3 46 lbs. (16″), 48 lbs (18″), 50 lbs. (20″)
    Maximum Seat Size 20″-20″
    Power Elevating Seat NA
    Standard Electronics 40A, PG GC3
    Battery Size(s)4 (2) 12 volt, U-1 or (1) 25V Lithium-iron phosphate
    Battery Weight6 (2) U1-23.5 lbs. each; (1)Lithium – 18.5 lbs.
    Battery Charger 3.5A, off-board
    Per Charge Range2,3,5 SLA- up to 14 miles (300 lbs.), up to 17.1 miles (200lbs,); Lithium up to 17.6 miles ( 300 lbs.), up to 21 miles (200lbs.)
    Weight of Heaviest Piece7 94 lbs. (base)
    Total Weight 189 lbs. . (SLA); 160.5 (Lithium)
    HCPCS Code Group 2: Standard (K0822/K0823)
    Warranty Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited (SLA); 3-year limited (Lithium)
    Colors Black (matte), White (matte), Red (matte), Iceberg Blue (matte), Robin’s Egg Blue (matte), Sugar Plum (matte)

    Notes:
    1Jazzy® Power Chairs are FDA class II Medical Devices designed to aid individuals with mobility impairments
    2Varies with user weight, terrain type, battery amp-hour(AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%).
    3Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+/* 3%).
    4AGM or gel cell type required.
    5Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
    6Battery weight may vary based on manufacturer.
    7Weight includes base, seat and batteries.
    HCPCS codes provided should not be considered as legal advice and do not guarantee reimbursement. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement

    The information contained herein is correct at time of publication; we reserve the right to alter specifications without prior notice.

    NOTE: All specifications subject to change without notice. The information contained herein is correct at the time of publication, we reserve the right to alter specifications without prior notice.
    Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or 3-%.
    Special order seats or non-standard dimensions will not be fold-flat and depth-adjustable.
