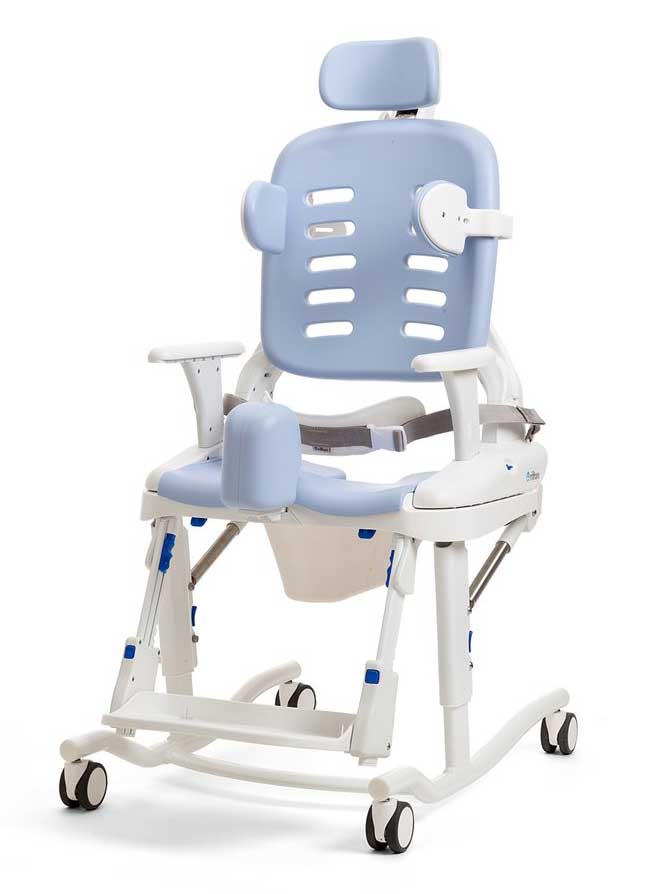

Hts Toileting System Medium

Brand: Rifton

The completely new Hygiene and Toileting System from Rifton.

Request Details

    Time and again, research has shown the necessity of good toileting for children’s health. So we designed the Rifton HTS with that in mind. Hygienic, simple, affordable, the Rifton HTS promotes the positioning that is ideal and natural for effective toileting. Meanwhile, its versatility and simplicity – usable on, over and off the toilet, no tools required – make the lives of caregivers better too.

    Features
    Ideal for any child, any toilet, anywhere
    Supportive and comfortable
    Reduces clean up
    Grows with the child (or multiple children)
    Easier lifts and transfers
    No tools required
    Hygienic and easy to clean
    Lasts for many years

    Small HTS Z110

    (Z110)

    Medium HTS Z120

    (Z120)

    Large HTS Z130

    (Z130)

    Overall height

    30 – 46

    (76 – 117 cm)

    42 – 56

    (106 – 142 cm)

    50 – 74

    (127 – 188 cm)
    SELECT
    SELECT
    SELECT
    Item Dimensions (inches)
    Tilt-in-space mobile base footprint 21×31 21×31 22½x33
    Tilt-in-space base length at full recline 43 49½ 57¼
    Non-tilt base footprint 20×28 20×28 21×29
    Seat (front) to footboard height* 8 – 13 10 – 15 13 – 18
    Seat (front) to floor; mobile tilt frame 15 – 21½ 15 – 21½ 17 – 22½
    Seat (front) to floor; mobile non-tilt frame 15½ – 20 15½ – 20 18 – 22
    Seat (front) to floor; stationary non-tilt frame 12½ – 17 12½ – 17 15 – 19
    Seat depth (1″ increments) 8/9/10/11 11½/12½/13½/14½ 14½/15½/16½/17½
    Seat width 8/10/12 10/12/14 13/15/17
    Hole size in seat pad open 4×9
    closed 3×8    		 open 4½x12
    closed 3½x10    		 open 6×14
    closed 4½x12
    Armrest height above seat 6 7 9
    Backrest height above seat 16½ 19½ 24½
    Backrest width 11½ 13½ 16
    Tilt-in-space FORWARD ** 5° 5° 5°
    Tilt-in-space BACK ** 25° 25° 25°
    Backrest angle adjustment 6° fwd, 6° and 18° back 6° fwd, 6° and 18° back 6° fwd, 6° and 18° back
    Frame weight (lbs) 15 27½ 45
    Maximum clearance height under seat (tilt frame) 19 19 20
    Maximum clearance height under seat (stationary non-tilt frame) 15 15 16½
    Maximum clearance height under seat (mobile non-tilt frame) 18 18 19½
    Portability base clearance (fits over ADA compliant toilets) 18½ 18½ N/A
    Portability kit carry bag dimensions 19½ high x 21¼ wide x 10 deep 19½ high x 21¼ wide x 10 deep N/A
    Bottom of frame to floor; tilt-in-space mobile base 2 2 2
    Tub base footprint 23×16½ at feet/20½ at top 26×16½ at feet/19 at top N/A
    Tub base height 11 at front x 9½ at back 11 at front x 9½ at back N/A
    Maximum working load (lbs) 75 150 250***
