Heron

Brand: R82

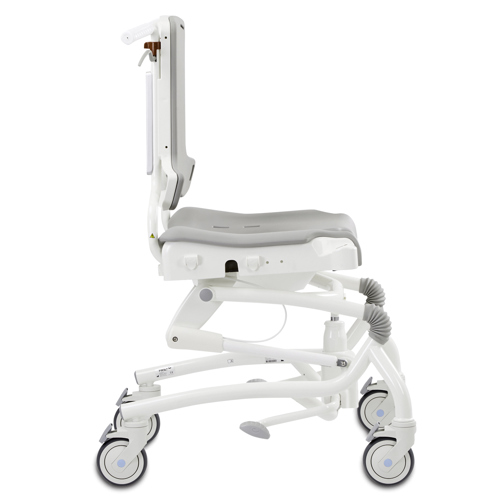

The Heron is a state of the art toilet and bathing chair.

    The simple design and clean appearance features multiple functionalities that improve both the user and caregiver experience. It sets new standards for users with special needs for positioning. The seat is ergonomically correct, meaning it can be tilted and the back reclined without any disadvantage for the user. Clever design means that during recline, the anatomical pivot point at the axis of the hips is maintained. This provides the user more comfort when seated.
    The Heron can be used freestanding with a pan, directly over the toilet or as a bathing chair in the shower. The smooth height, tilt and recline functions ensure optimum working conditions for the carer. To maintain safety, the Heron is equipped with four lockable casters. Washable at 85°C in a washing machine designed for medical devices. Remember to remove all accessories, unplug all cables and make sure to dismount the control box, battery and remote control before machine washing.

    Features:
    -Hydraulic or power version
    The Heron is available as a hydraulic or power version. Both contain the same features of tilt-in-space and back recline, but for extra ease and comfort for the carer, we recommend using the power version.

    -Perfect working conditions
    One of the great features of the Heron is the hydraulic or powered height adjustment which allow you to adjust the chair into the correct position and reduce the time spent in a twisted or awkward position.

    -Optimum positioning
    The Heron is suitable for teenagers. Change the back height and add a couple of simple accessories to change seat width and seat depth – it is easy to make the Heron fit perfectly!

    -Comfortable seating
    Pressure mapping has been used in the design of Heron to minimise pressure and improve comfort for users even when the seat is used for extended periods of time.

    Hydraulic

    Power

    Item number 880505-01 880505-01EL
    Back width, top of backrest (mm) 290 290
    Backrest angle (°) (-10)-30 (-10)-30
    Backrest height (mm) 555-625 555-625
    Effective seat depth (mm) 450 450
    Effective seat width (mm) 550 550
    Length (mm) 710 710
    Lower leg length (mm) 400-560 400-560
    Mass device (kg) 28 31
    Maximum rated load (kg) 130 163
    Maximum user mass (kg) 100 130
    Minimum turning diameter (mm) 900 900
    Overall height (mm) 1080-1350 1130-1350
    Overall width (mm) 670 670
    Seat plane angle (°) (-5)-25 (-5)-25
    Seat surface height at front edge (mm) 510-780 560-780
    Static stability downhill (°) 10 10
    Static stability sideways (°) 5 5
    Static stability uphill (°) 10 10
