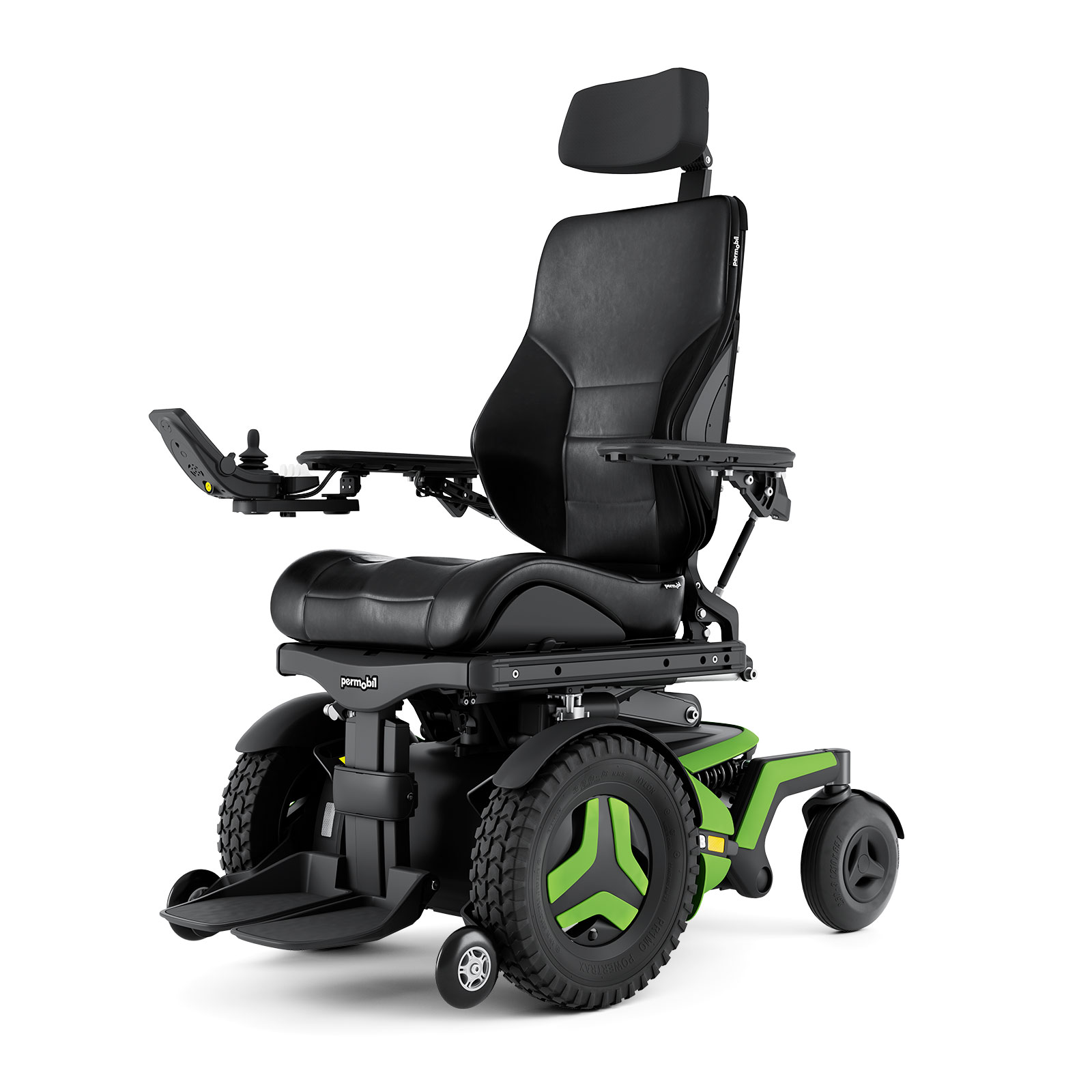

The F3 Corpus offers the smallest footprint of the F-series front wheel drive power wheelchairs. Its compact size and agility allows users to easily maneuver in and out of tight spaces. The optimized battery weight distribution, lower center of mass and fully adjustable ComfortRide suspension improve stability while traversing inclines or declines. Experience the enhanced functionality of the F3 by combining outstanding chassis performance with Permobil’s industry leading Corpus Seating System offering 12” of ActiveHeight and up to 30º of ActiveReach forward tilt technology.
- Specifications
| Maximum User Weight | 330 lb |
| Maximum Speed | 6 mph, 5 mph without anti-tips |
| Minimal Seat Width | 17 ” |
| Maximum Seat Width | 23 ” |
| Minimal Seat Depth | 14 ” |
| Maximal Seat Depth | 22 ” |
| Driving Range | 16 mi |
| Alternate Driving Range | 20 mi |
| Base Width | 24 ” |
| Base Length | 36″ & 40″ |
| Minimum Turning Radius | 26.5 ” |
| Ground Clearance | 3 ” |
| Drive Electronics | R-net 120A |
| Battery Type | Group 24 Gel (Driving Range 20 miles), Group 34 Gel (Driving Range 16 miles) |
| Seat To Floor Height | 17.5″, 18.5″, 19.5″ |
| Power Tilt Options | 0°-50° Posterior and 5º, 10°, 20° & 30° Anterior |
| Recline Options | 85º-120° (manual), 85º-180° (power) |
| Legrest Elevation | 85°-180° |
| Armrest Pad Lengths | 13″, 16″ & 18″ |
| Backrest Heights | 20″, 23″-28″ (by 1″ incr.) |
| Optional Seat Elevator | 12″ |
| Weight Including Batteries | 386 lb |
