E-Pacer

Brand: Rifton

Versatile and powerful.

    The E-Pacer is the largest member of the Pacer family. Its sit-to-stand lift functionality removes a major barrier to gait training with large or highly dependent clients.

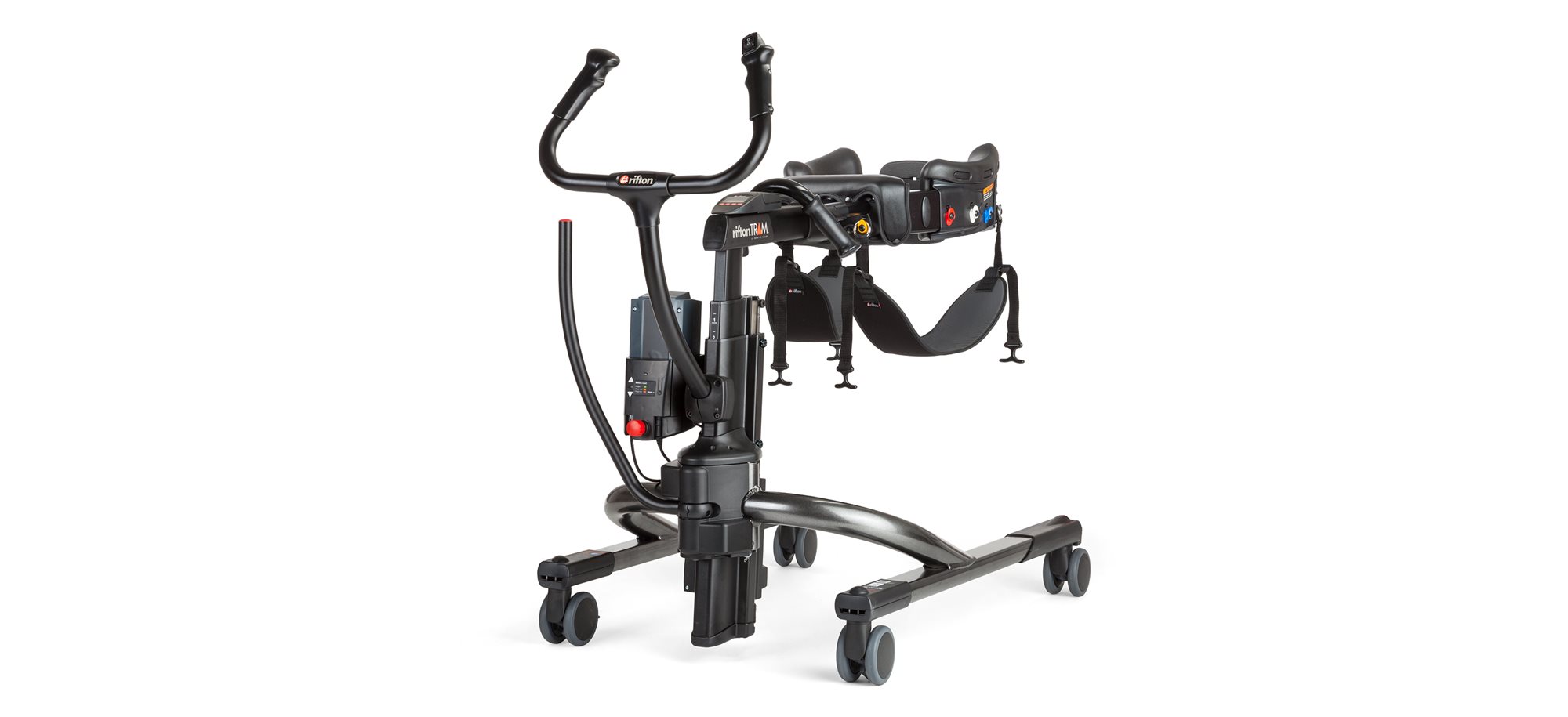

    The E-Pacer combines the powerful electric lift column and secure body support of the TRAM with the key gait training features of the classic Pacer. The result is more than the sum of its parts. The E-Pacer can be a life-changing solution for clients who have grown too large or too dependent to be safely transferred into manual gait trainers. Its strong and stable frame can accommodate users up to 6′ 5″” and 350 lb.

    Key user dimensions (inches)

    E-Pacer

    (K660)

    Girth

    22 – 55

    Item Dimensions (inches)
    Overall length 44¾
    Overall width 31½ – 51¾
    Overall height 32¾ – 59
    E Pacer weight 72 lbs
    Turning diameter 50
    Floor to top of base leg for furniture clearance
    Minimum user armpit height (when standing or ambulating) 31½
    Maximum user height (when standing or ambulating) 77 (6’5)
    Maximum working load (lb) 350
    Technical specifications
    Lifting speed 1½ inch/sec with no load
    Batteries 24V, 2.9 Ah valve-regulated lead-acid gel-type batteries. (Replacement batteries available from Rifton.)
    Battery charger Wall-mounted charger, 100 – 240 V AC, max 650 mA
     Motor 24V, 6A, permanent magnet motor
    Emergency lowering Electrical
    Wheels Front: 100mm dual with brake; Rear: 100mm dual
    Motor duty cycle Two minutes continuous use followed by 18 minutes idle
