Cougar

Brand: R82

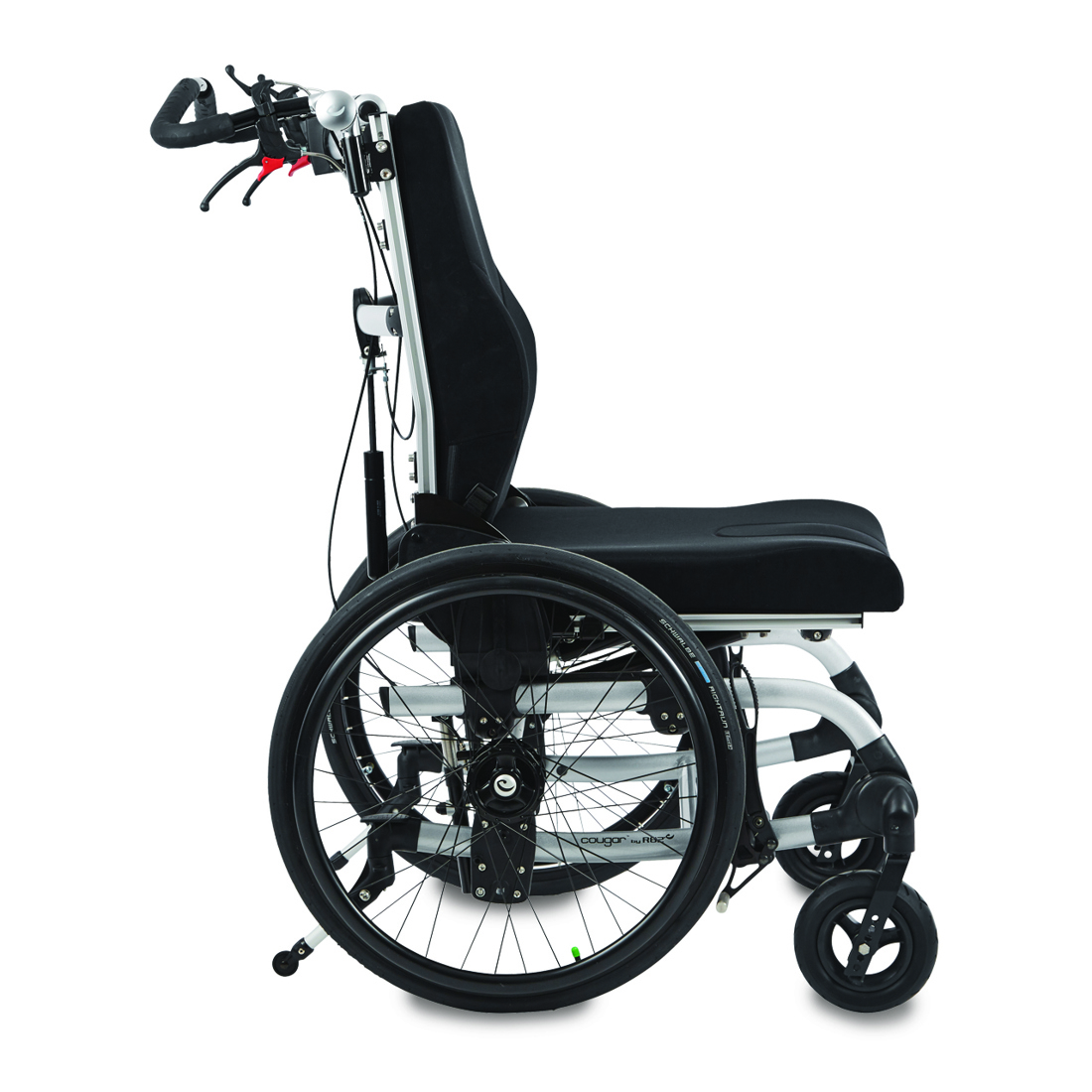

The Cougar is a wheelchair for children and youngsters which supports a correct posture and comfortable seating position.

    It is a practical wheelchair suitable for both indoor and outdoor use. It comes in 4 sizes and the many adjustable features follows the growth of your child. The Cougar features effortless tilting of the seat angle while still maintaining optimum balance. The wheelchair remains stable even with the back reclined and while tilted. The Cougar complies with ISO 7176-19, transporting users in motor vehicles at a max user weight of 120 kg.
    Features:
    – Center of gravity and tilt in space
    The Combi Frame:x center of gravity is self-centring. The seating unit can be tilted from horizontal to 40 degrees
    – Compatible with different seat and back systems
    The Combi Frame:x can be equipped with different back systems and cushions
    – Fixed mounting or interface
    Various seats can be mounted directly onto the Combi Frame:x. Alternatively the seats can be mounted into an interface. The frame is used for a variety of seating units like the Panda Futura and x:panda from R82
    – Safe transportation in vehicles
    The Combi Frame:x complies with the international transit wheelchair standard ISO 7176-19. The Combi Frame:x can be used with seat units that comply with ISO 16840-4

    Size 1

    Size 2 Size 3

    Size 4

    Item number 9711xxxxxxxx 9721xxxxxxxx 9731xxxxxxxx 9741xxxxxxxx
    Backrest angle (°) 35 35 35 35
    Backrest height (mm) 450 500 600 600
    Effective seat depth (mm) 370-470 370-470 430-530 490-590
    Effective seat width (mm) 350 400 450 500
    Folded height to the top of the back (mm) 660 660 660 660
    Folded length without leg rests (mm) 780 780 830 830
    Footrest to seat distance, angle leg rests (mm) 280-460 280-460 280-460 280-460
    Leg to seat surface angle (°) 90 90 90 90
    Length (mm) 780 780 830 830
    Mass device (kg) 25 26 27 28
    Maximum rated load (kg) 102 103 129 150
    Maximum user mass (kg) 75 75 100 120
    Maximum user mass in transportation (kg) 75 75 75 75
    Minimum turning radius (mm) 880 940 970 1000
    Overall height to backrest (mm) 960 990 1080 1100
    Overall width 22″ wheels & drumbrake (mm) 570 620 670 720
    Seat plane angle (°) 37(45) 37(45) 37(45) 37(45)
    Seat surface height at front edge (mm) 460-530 460-530 460-530 460-530
