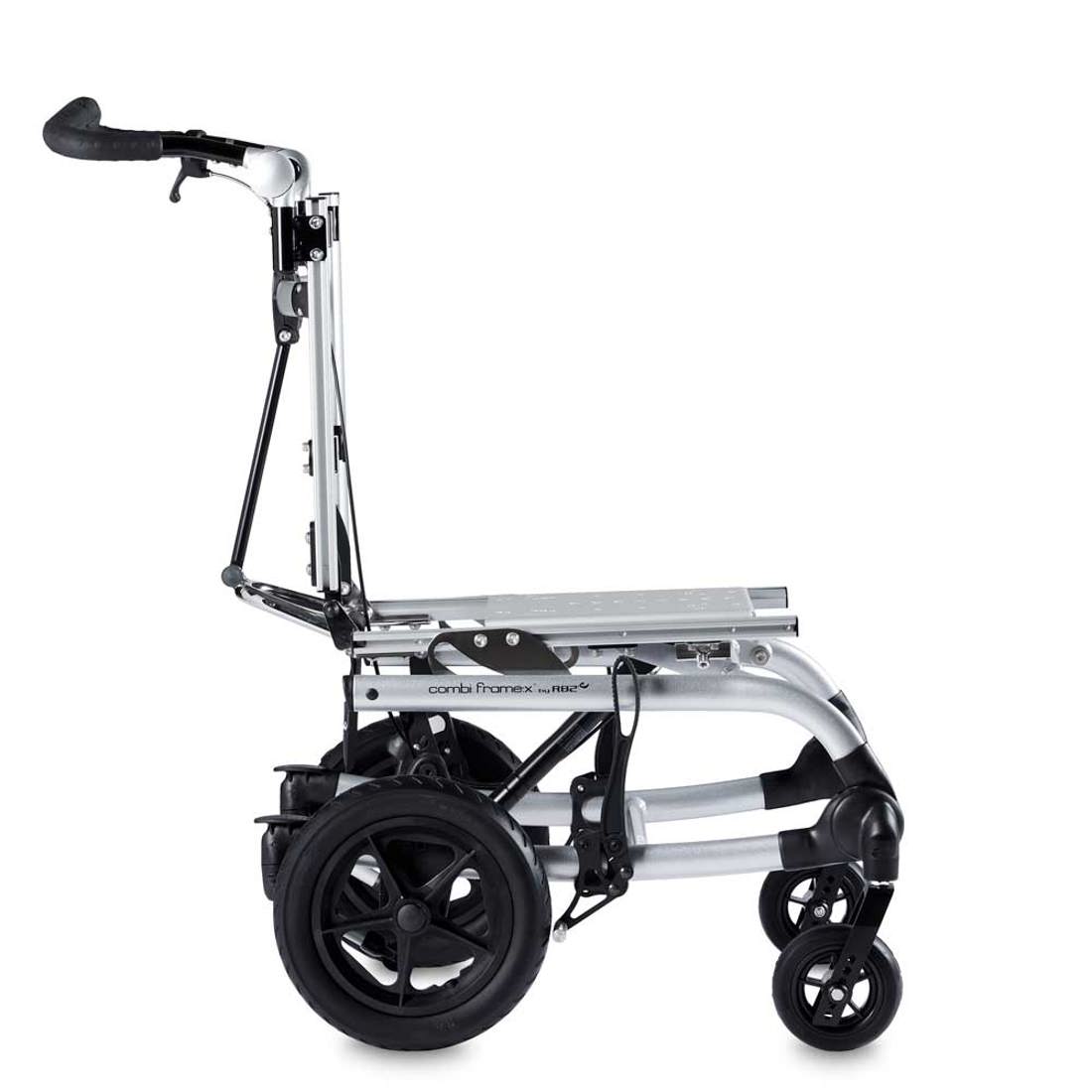

Combi Frame:x

Brand: R82

The Combi Frame:x is a unique wheelchair frame for customized seating systems.

    The Combi Frame:x is ideal for both indoor and outdoor use and can be fitted with different seat and back systems. Both users and caregivers benefit from the many built-in functions and simple adjustment possibilities. The Combi Frame:x is suitable for users needing an individual seating system and base.
    Features:
    – The x:panda and Panda Futura seats are easily mounted directly on the Combi Frame:x or by using an adaptor. Other types of seating units are mounted directly onto the base plate.
    – The frame is available in silver or white with 12½”, 20”, 22” or 24” rear wheels, and 6” or 7” front wheels.
    – Both users and caregivers benefit from the many built-in functions and simple adjustment possibilities. The Combi Frame:x is suitable for users needing an individual seating system and base.
    – The x:panda and Panda Futura seats are easily mounted directly on the Combi Frame:x or by using an adaptor. Other types of seating units are mounted directly onto the base plate.
    The frame is available in silver or white with 12½”, 20”, 22” or 24” rear wheels, and 6” or 7” front wheels.
    – Center of gravity and tilt in space: The Combi Frame:x center of gravity is self-centring. The seating unit can be tilted from horizontal to 40 degrees
    – Compatible with different seat and back systems: The Combi Frame:x can be equipped with different back systems and cushions
    – Fixed mounting or interface: Various seats can be mounted directly onto the Combi Frame:x. Alternatively the seats can be mounted into an interface. The frame is used for a variety of seating units like the Panda Futura and x:panda from R82
    – Safe transportation in vehicles: The Combi Frame:x complies with the international transit wheelchair standard ISO 7176-19. The Combi Frame:x can be used with seat units that comply with ISO 16840-4
    Size 1 Size 2 Size 3

    Size 4

    Item number 31981xxxx0xxx 982xxxx0xxx 983xxxx0xxx 984xxxx0xxx
    Back angle (°) 0-30 0-30 0-30 0-30
    Back height (mm) 430 470 570 670
    Base plate (width x depth) (mm) 220×250 270×300 320×350 370×400
    Folded height (mm) 550 550 550 550
    Folded length (mm) 800 800 840 940
    Footrest to adaptor plate (mm) 100-250 100-250 180-330 180-330
    Mass device (kg) 22 23 24 27
    Mass device, without rear wheels (kg) 19 20 21 24
    Max load (kg) 100 100 100 100
    Max load at transportation (kg) 100 100 100 100
    Maximum rated load (kg) 124 125 126 129
    Minimum turning radius (mm) 600 600 600 600
    Overall height (mm) 900 940 1040 1140
    Overall length (mm) 830 830 830 830
    Overall width (mm) 580 630 680 730
    Seat plane angle (°) 0-40 0-40 0-40 0-40
    Seat surface height at front edge (mm) 430, 460, 490 430, 460, 490 430, 460, 490 430, 460, 490
    Static stability downhill (°) 9 9 9 9
    Static stability sideways (°) 9 9 9 9
    Static stability uphill (°) 9 9 9 9
    Width between wheels (mm) 440 490 560 600
    Width, base plate (mm) 220 270 320 370
